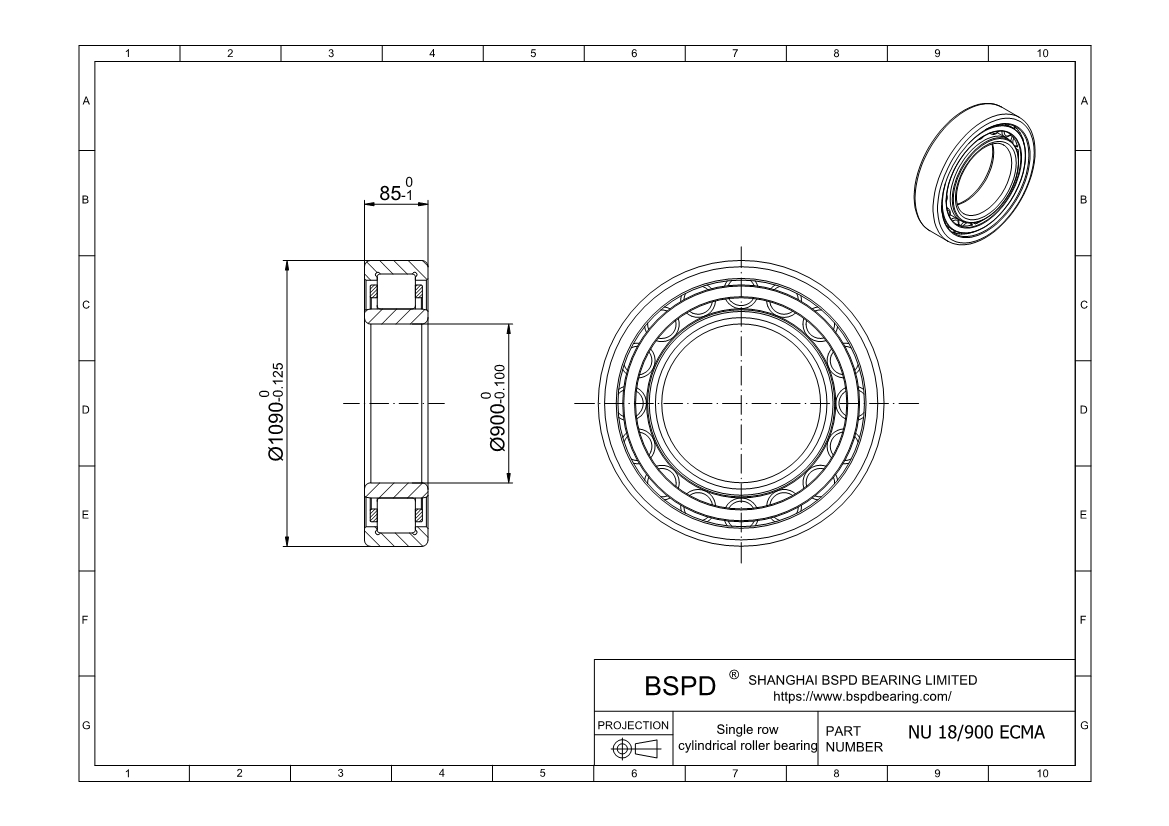

NU 18/900 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 900 mm； Outer Diameter: 1090 mm； Width (Thickness): 85 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 18/900 ECMA |
| Bore diameter | 900 mm |
| Outside diameter | 1090 mm |
| Width | 85 mm |
| Basic dynamic load rating | 1980 kN |
| Basic static load rating | 4900 kN |
| Fatigue load limit | 240 kN |
| Reference speed | 450 r/min |
| Limiting speed | 600 r/min |
| Mass | 169 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 1026 mm |
| Raceway diameter | 948 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 18/900 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
