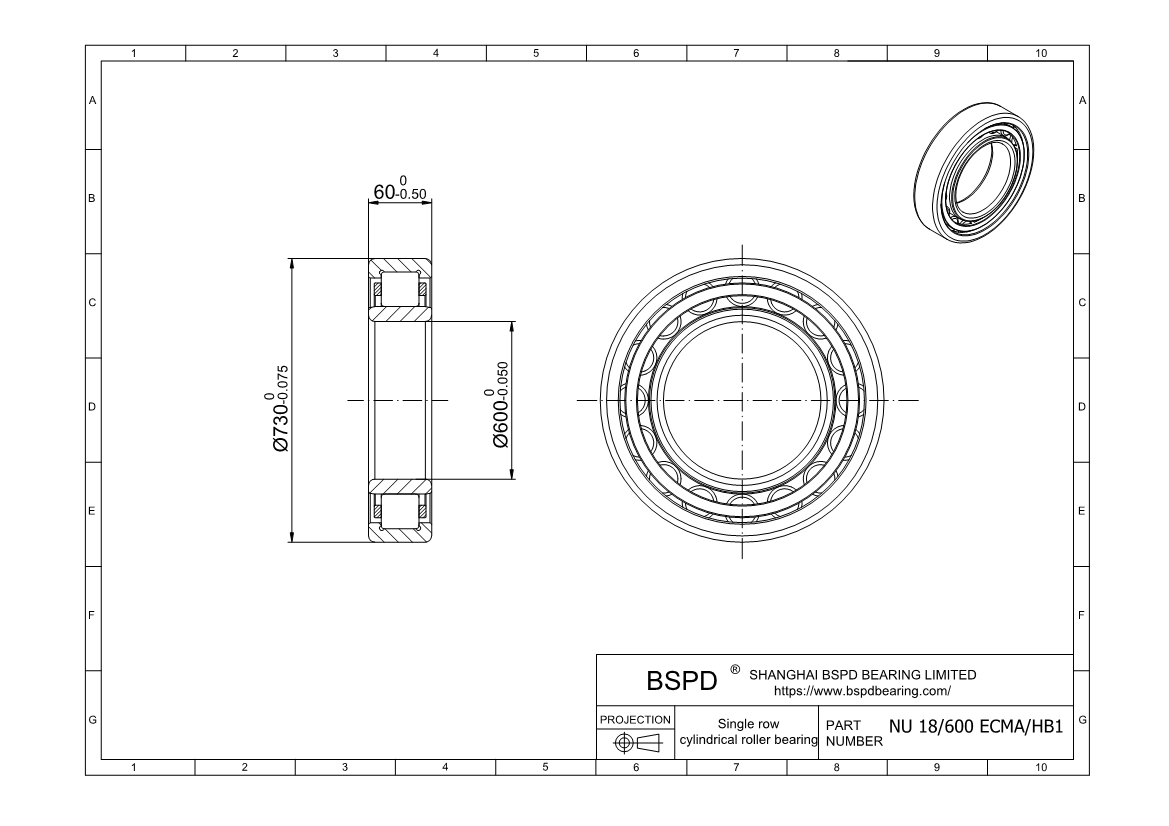

NU 18/600 ECMA/HB1
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 600 mm； Outer Diameter: 730 mm； Width (Thickness): 60 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 18/600 ECMA/HB1 |
| Bore diameter | 600 mm |
| Outside diameter | 730 mm |
| Width | 60 mm |
| Basic dynamic load rating | 897 kN |
| Basic static load rating | 2080 kN |
| Fatigue load limit | 108 kN |
| Reference speed | 800 r/min |
| Limiting speed | 1000 r/min |
| Mass | 54 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 681 mm |
| Raceway diameter | 632 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 18/600 ECMA/HB1 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
