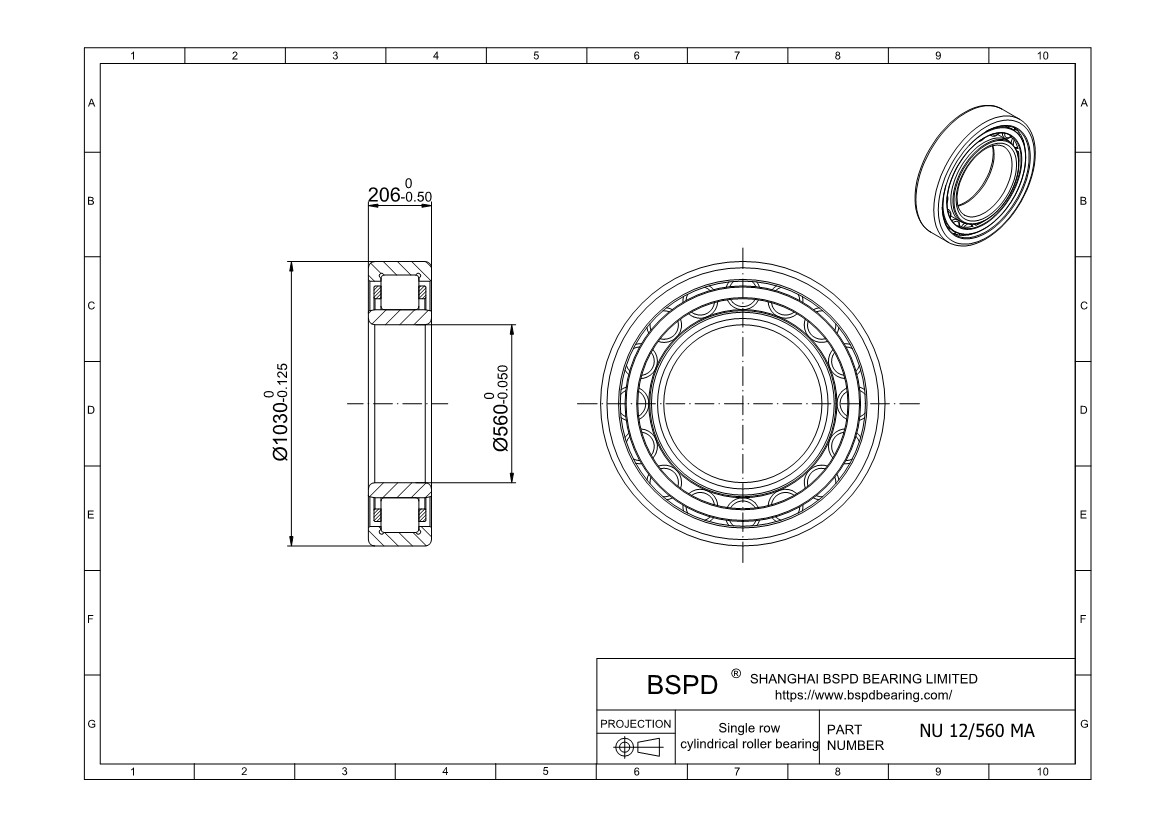

NU 12/560 MA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 560 mm； Outer Diameter: 1030 mm； Width (Thickness): 206 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 12/560 MA |
| Bore diameter | 560 mm |
| Outside diameter | 1030 mm |
| Width | 206 mm |
| Basic dynamic load rating | 7210 kN |
| Basic static load rating | 11200 kN |
| Fatigue load limit | 780 kN |
| Reference speed | 560 r/min |
| Limiting speed | 800 r/min |
| Mass | 805 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 892 mm |
| Raceway diameter | 668 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 12/560 MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
