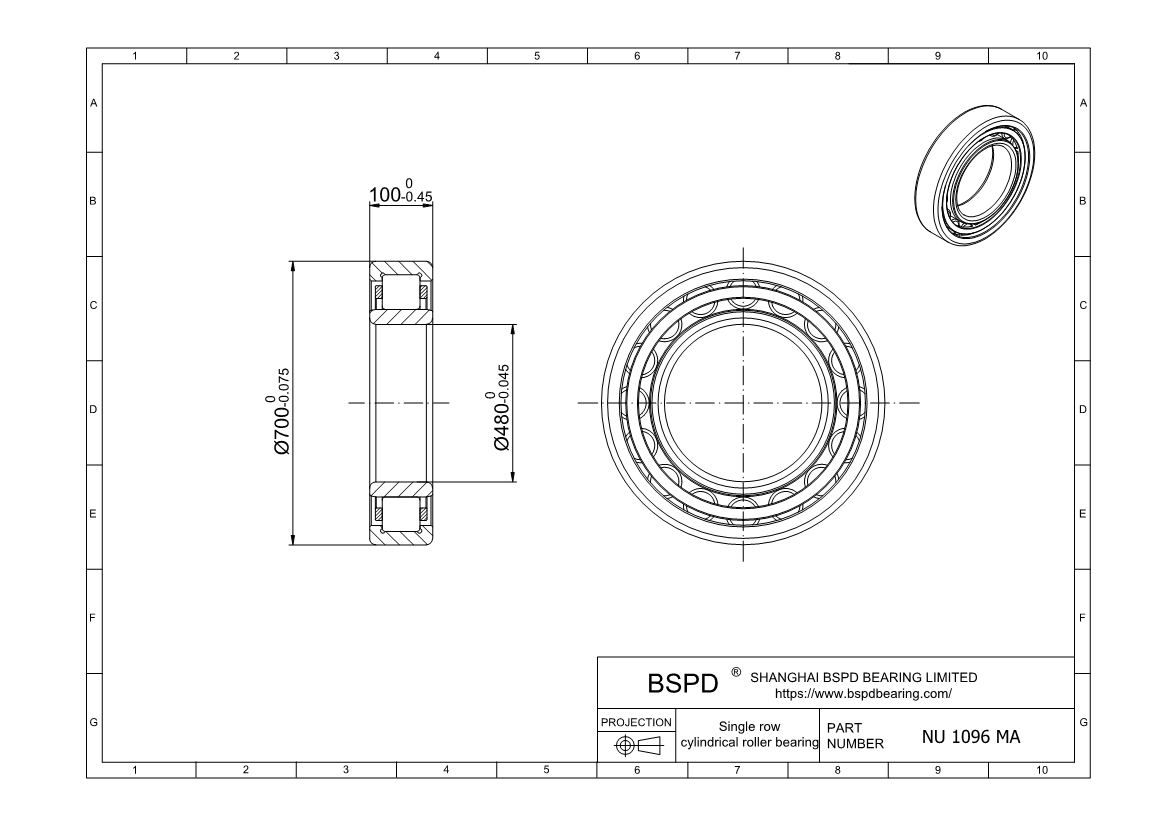

NU 1096 MA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 480 mm； Outer Diameter: 700 mm； Width (Thickness): 100 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 1096 MA |
| Bore diameter | 480 mm |
| Outside diameter | 700 mm |
| Width | 100 mm |
| Basic dynamic load rating | 1680 kN |
| Basic static load rating | 3000 kN |
| Fatigue load limit | 232 kN |
| Reference speed | 900 r/min |
| Limiting speed | 1200 r/min |
| Mass | 130 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 620 mm |
| Raceway diameter | 536 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 1096 MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
