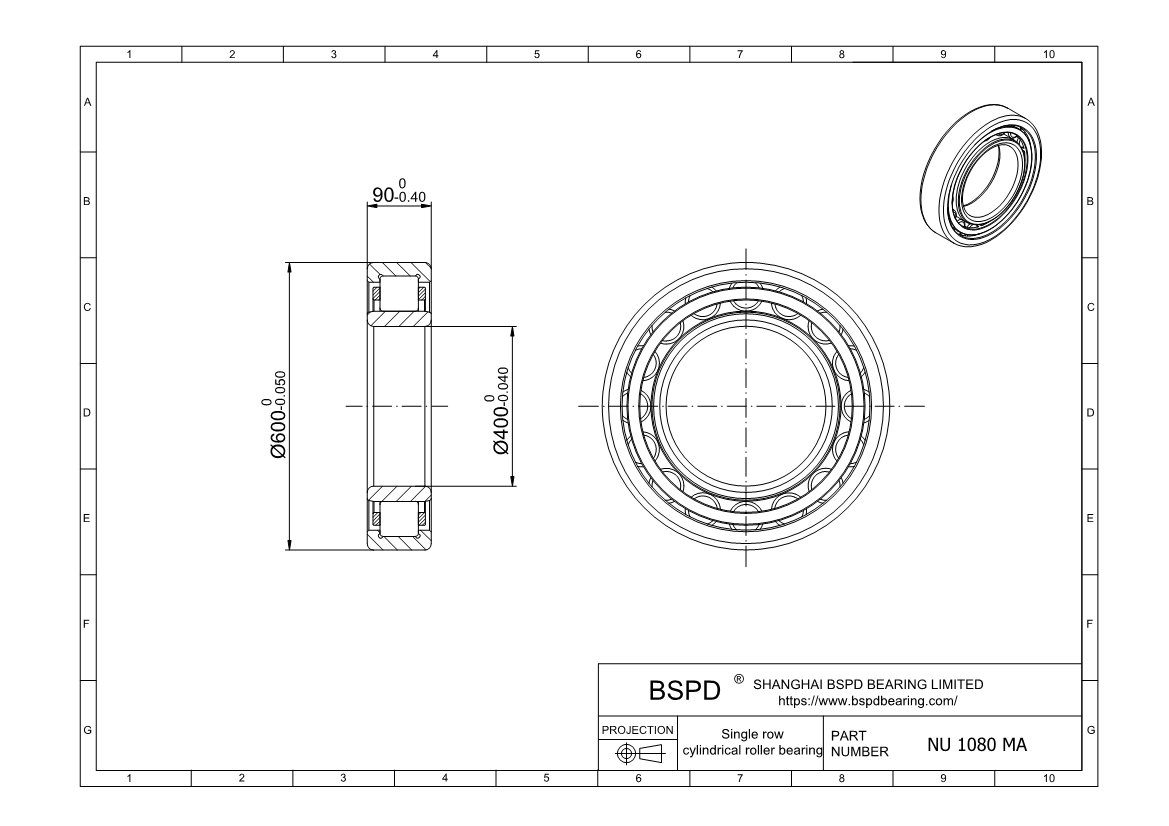

NU 1080 MA Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 400 mm； Outer Diameter: 600 mm； Width (Thickness): 90 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NU 1080 MA
Bore diameter	400 mm
Outside diameter	600 mm
Width	90 mm
Basic dynamic load rating	1380 kN
Basic static load rating	2320 kN
Fatigue load limit	196 kN
Reference speed	1100 r/min
Limiting speed	1500 r/min
Mass	90 kg
Shoulder diameter of inner ring	–
Shoulder diameter of outer ring	527 mm
Raceway diameter	450 mm
