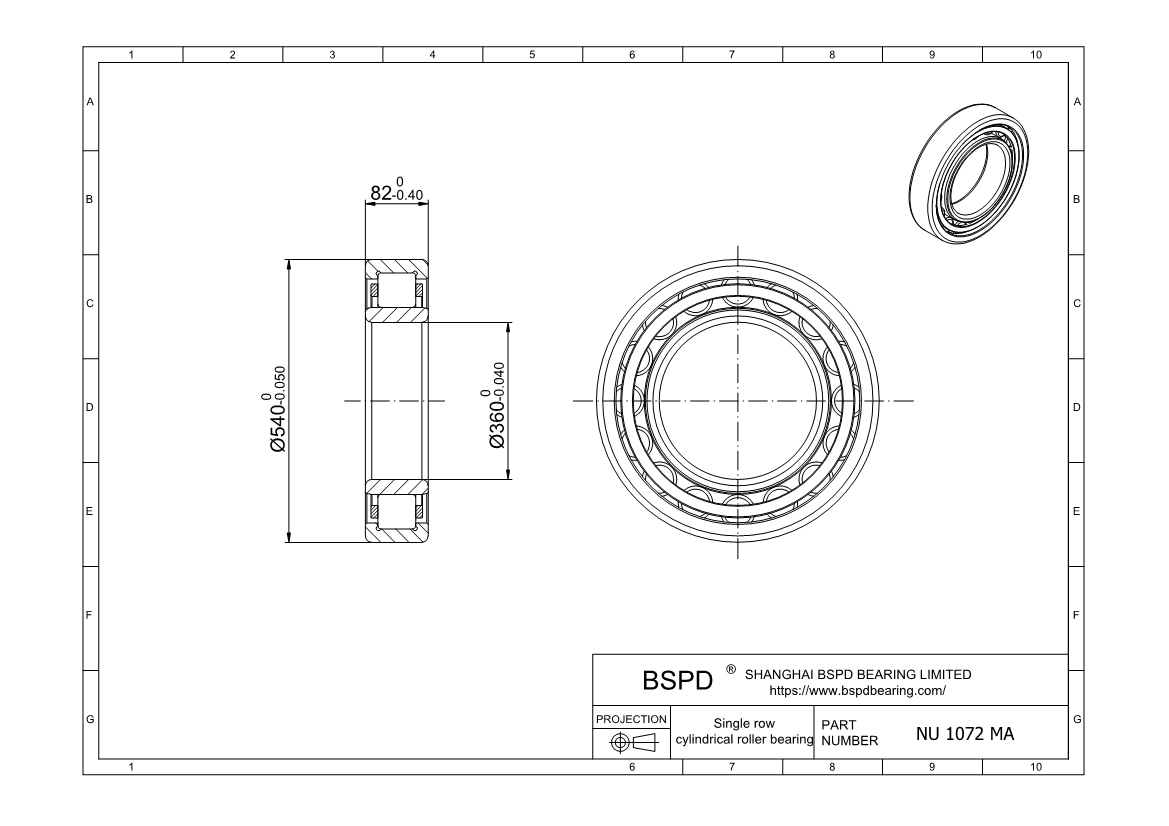

NU 1072 MA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 540 mm； Width (Thickness): 82 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 1072 MA |
| Bore diameter | 360 mm |
| Outside diameter | 540 mm |
| Width | 82 mm |
| Basic dynamic load rating | 1100 kN |
| Basic static load rating | 1830 kN |
| Fatigue load limit | 163 kN |
| Reference speed | 1300 r/min |
| Limiting speed | 1600 r/min |
| Mass | 67.5 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 475 mm |
| Raceway diameter | 405 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 1072 MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
