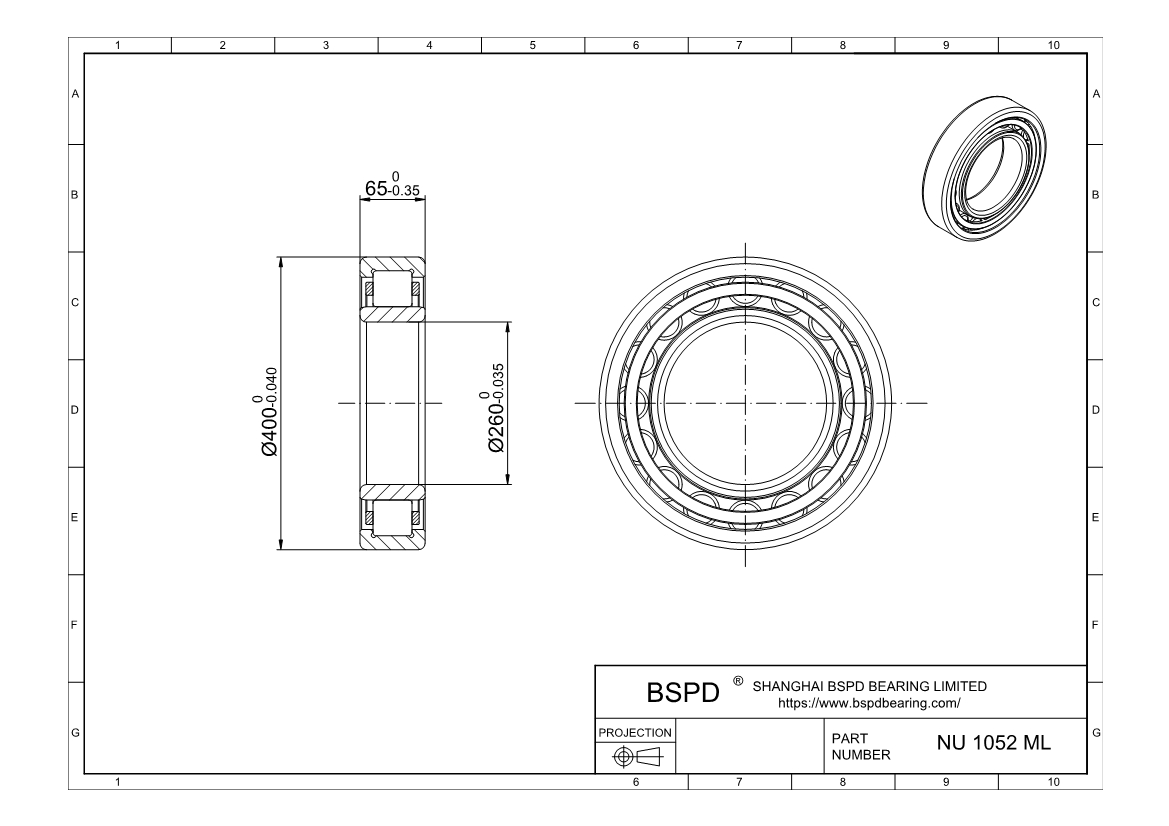

NU 1052 ML Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 260 mm； Outer Diameter: 400 mm； Width (Thickness): 65 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NU 1052 ML
Bore diameter	260 mm
Outside diameter	400 mm
Width	65 mm
Basic dynamic load rating	627 kN
Basic static load rating	965 kN
Fatigue load limit	96.5 kN
Reference speed	1800 r/min
Limiting speed	2800 r/min
Mass	29.5 kg
Shoulder diameter of inner ring	–
Shoulder diameter of outer ring	353.1 mm
Raceway diameter	296 mm
