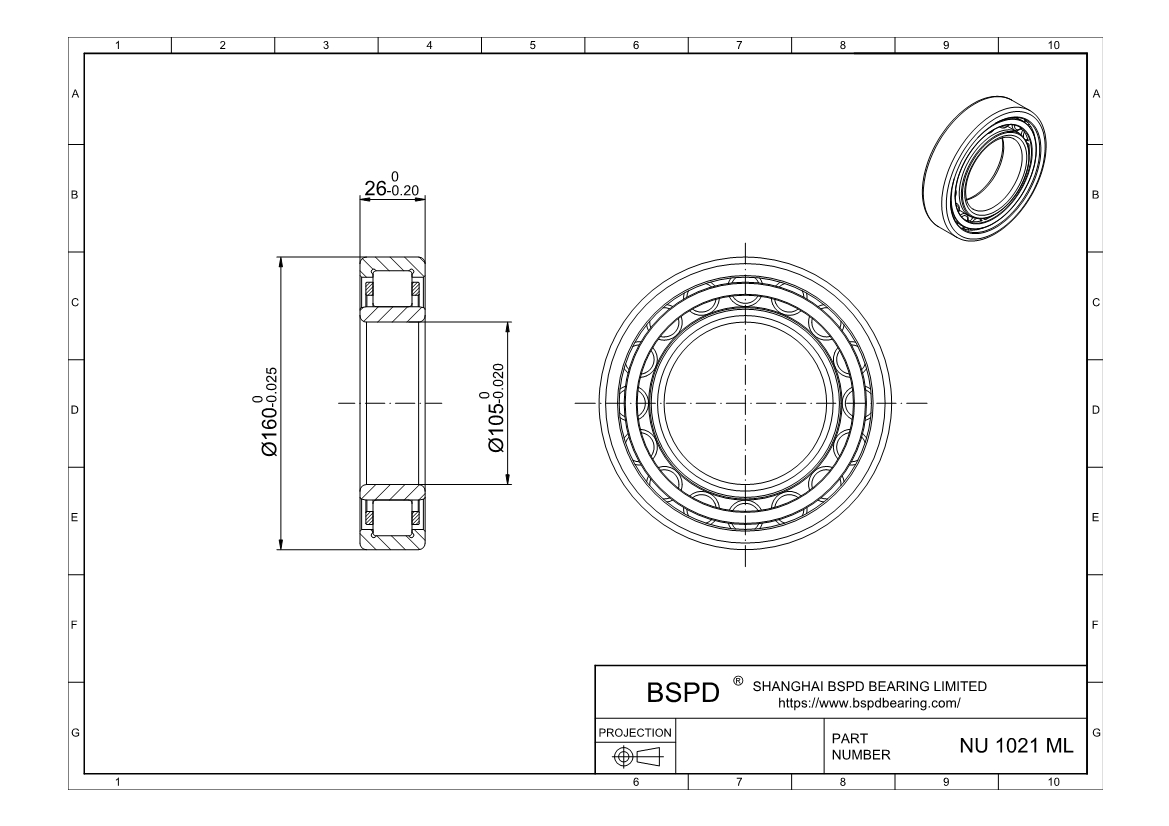

NU 1021 ML Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 105 mm； Outer Diameter: 160 mm； Width (Thickness): 26 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NU 1021 ML
Bore diameter	105 mm
Outside diameter	160 mm
Width	26 mm
Basic dynamic load rating	101 kN
Basic static load rating	137 kN
Fatigue load limit	16 kN
Reference speed	4800 r/min
Limiting speed	7500 r/min
Mass	1.9 kg
Shoulder diameter of inner ring	–
Shoulder diameter of outer ring	140.8 mm
Raceway diameter	119.5 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
