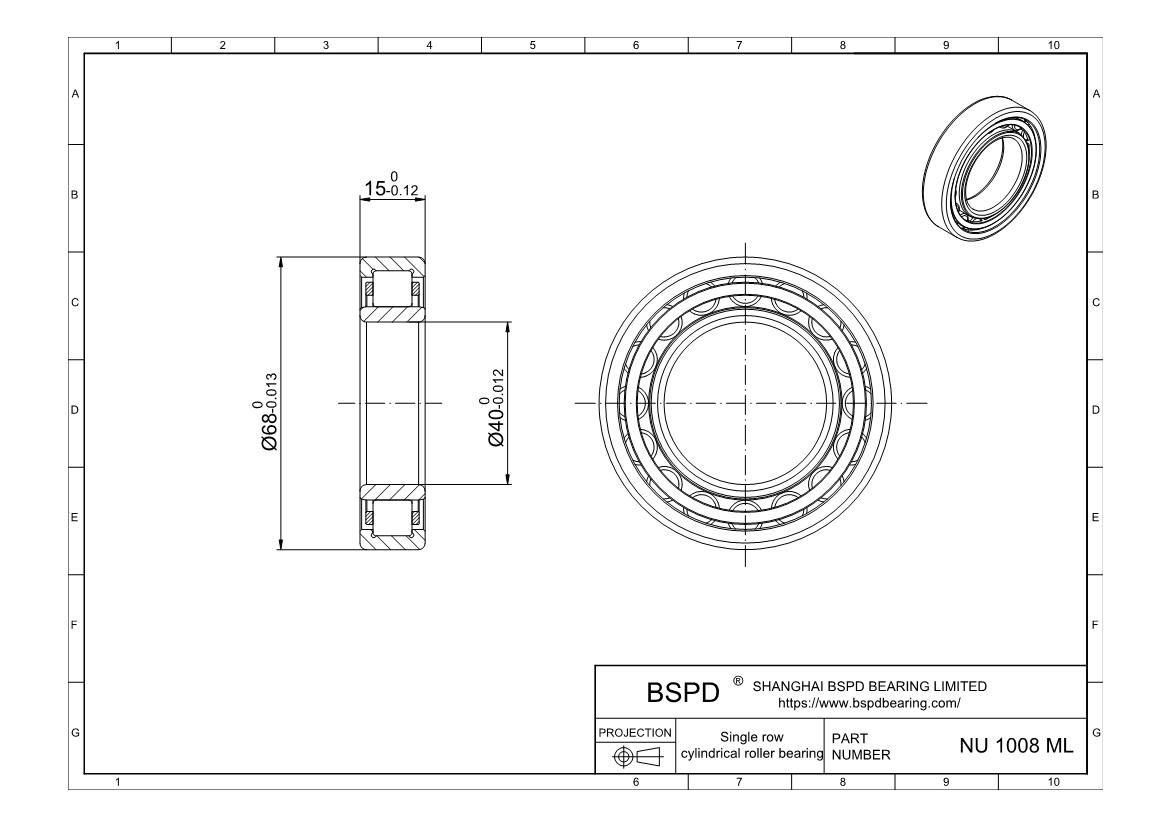

NU 1008 ML
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 68 mm； Width (Thickness): 15 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 1008 ML |
| Bore diameter | 40 mm |
| Outside diameter | 68 mm |
| Width | 15 mm |
| Basic dynamic load rating | 25.1 kN |
| Basic static load rating | 26 kN |
| Fatigue load limit | 3 kN |
| Reference speed | 12000 r/min |
| Limiting speed | 18000 r/min |
| Mass | 0.23 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 57.6 mm |
| Raceway diameter | 47 mm |
Print PDF
Request a 3D CAD Model
