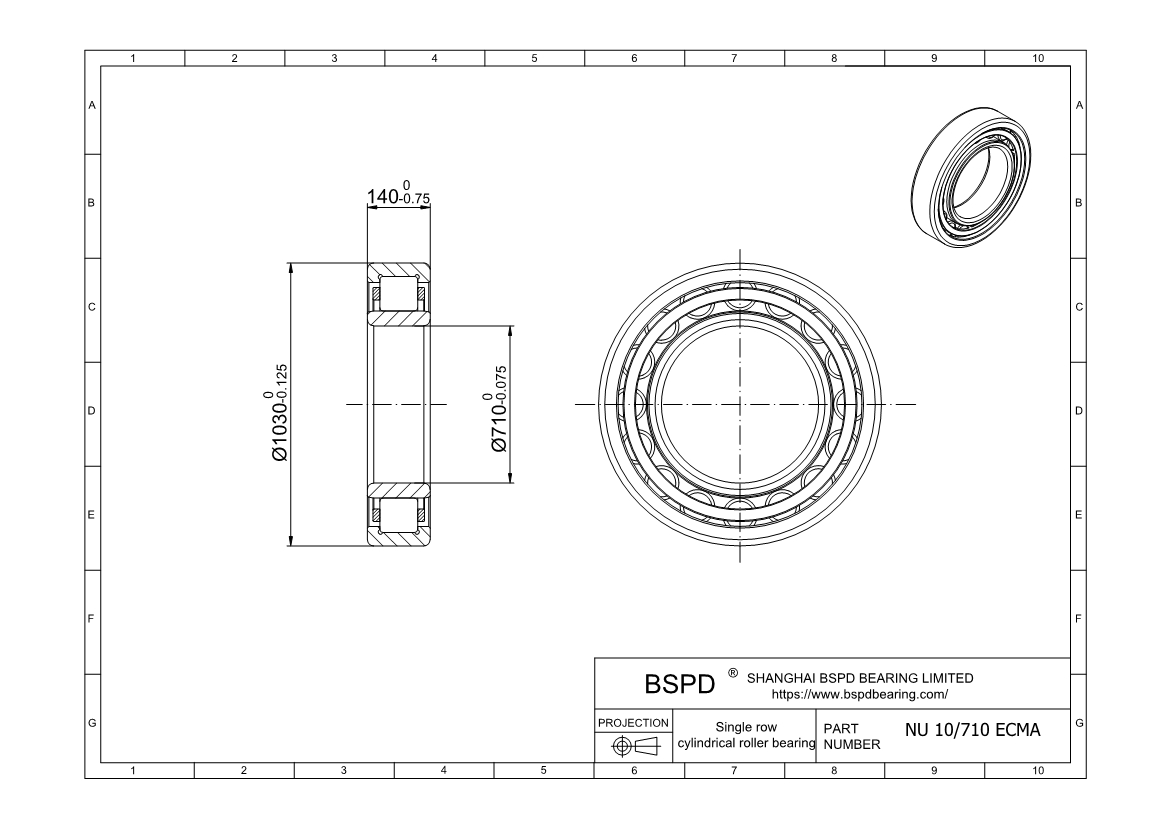

NU 10/710 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 710 mm； Outer Diameter: 1030 mm； Width (Thickness): 140 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 10/710 ECMA |
| Bore diameter | 710 mm |
| Outside diameter | 1030 mm |
| Width | 140 mm |
| Basic dynamic load rating | 4680 kN |
| Basic static load rating | 8500 kN |
| Fatigue load limit | 570 kN |
| Reference speed | 560 r/min |
| Limiting speed | 750 r/min |
| Mass | 415 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 939 mm |
| Raceway diameter | 778 mm |
Print PDF
Request a 3D CAD Model
