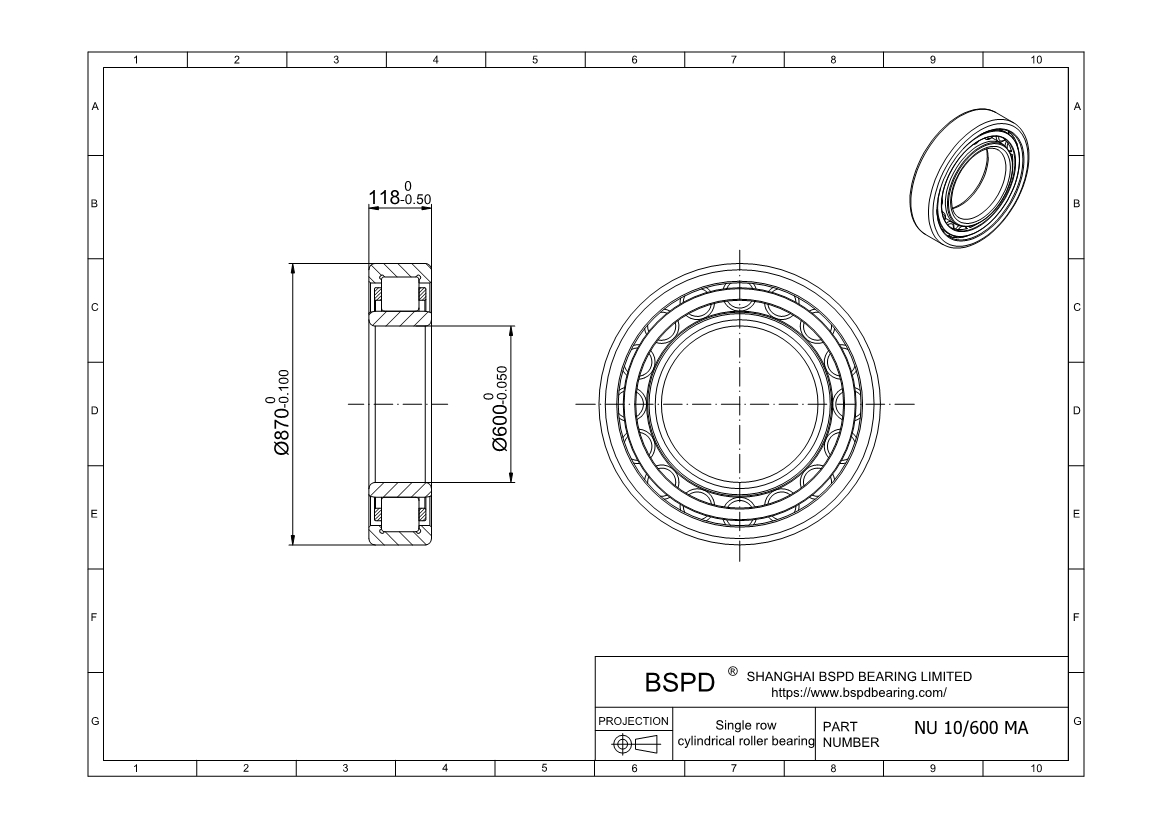

NU 10/600 MA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 600 mm； Outer Diameter: 870 mm； Width (Thickness): 118 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 10/600 MA |
| Bore diameter | 600 mm |
| Outside diameter | 870 mm |
| Width | 118 mm |
| Basic dynamic load rating | 2750 kN |
| Basic static load rating | 5100 kN |
| Fatigue load limit | 365 kN |
| Reference speed | 700 r/min |
| Limiting speed | 900 r/min |
| Mass | 240 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 779 mm |
| Raceway diameter | 667 mm |
Print PDF
Request a 3D CAD Model
