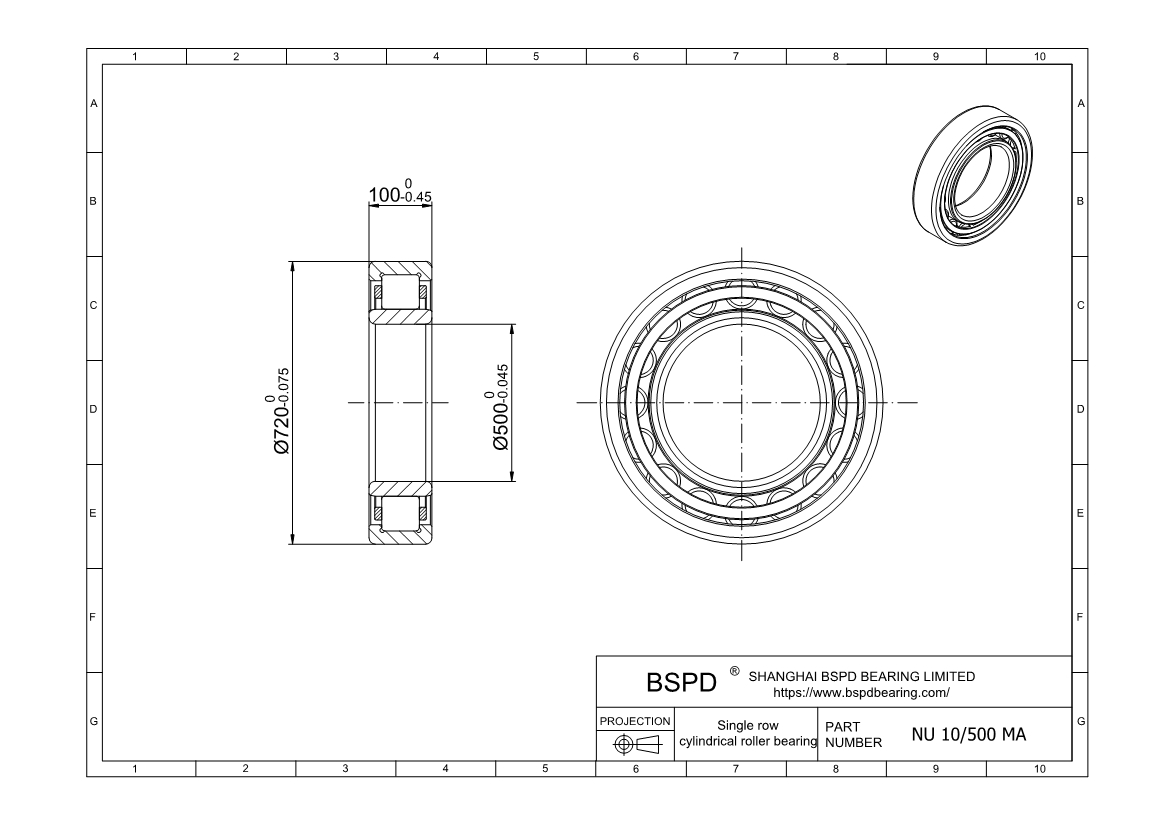

NU 10/500 MA Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 500 mm； Outer Diameter: 720 mm； Width (Thickness): 100 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NU 10/500 MA
Bore diameter	500 mm
Outside diameter	720 mm
Width	100 mm
Basic dynamic load rating	1720 kN
Basic static load rating	3100 kN
Fatigue load limit	236 kN
Reference speed	900 r/min
Limiting speed	1100 r/min
Mass	135 kg
Shoulder diameter of inner ring	–
Shoulder diameter of outer ring	640 mm
Raceway diameter	556 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NU 10/500 MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
