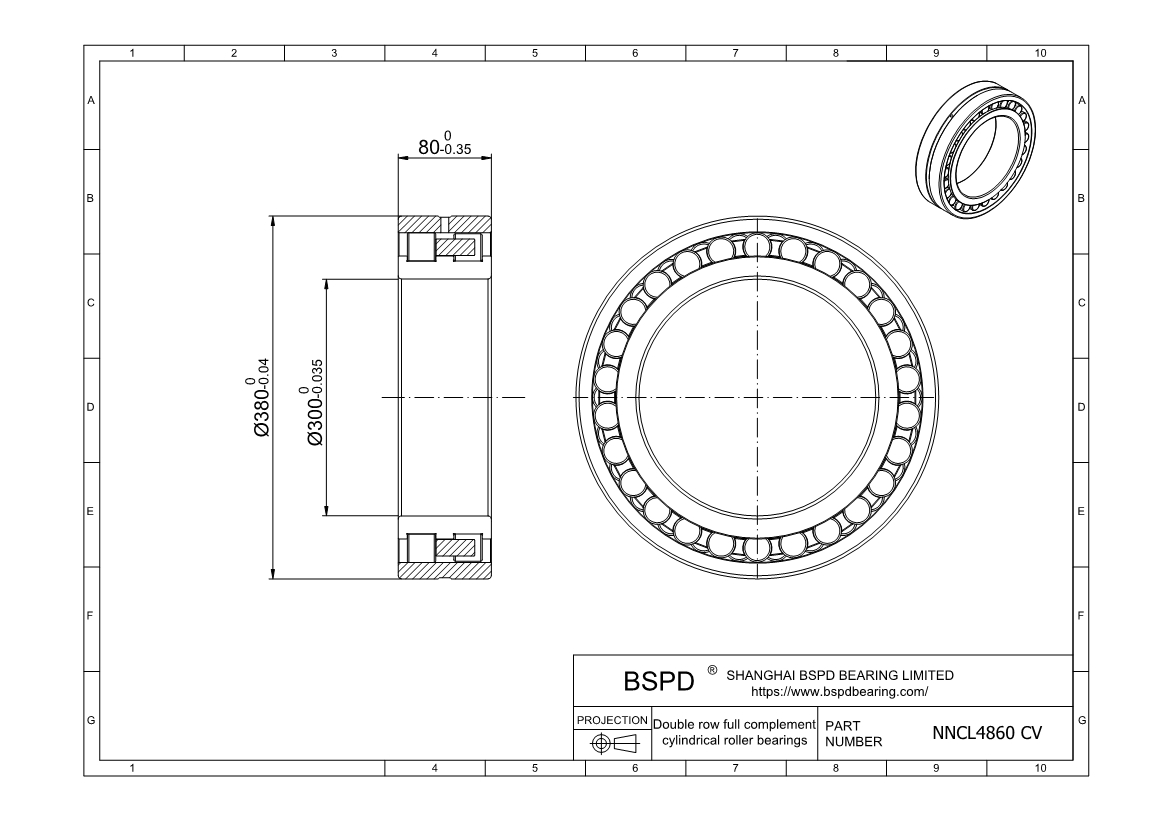

NNCL4860 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 380 mm； Width (Thickness): 80 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCL4860 CV
Bore diameter	300 mm
Outside diameter	380 mm
Width	80 mm
Basic dynamic load rating	858 kN
Basic static load rating	2120 kN
Fatigue load limit	196 kN
Reference speed	700 r/min
Limiting speed	850 r/min
Mass	22 kg
Shoulder diameter of inner ring	330 mm
Shoulder diameter of outer ring	–

Print PDF
