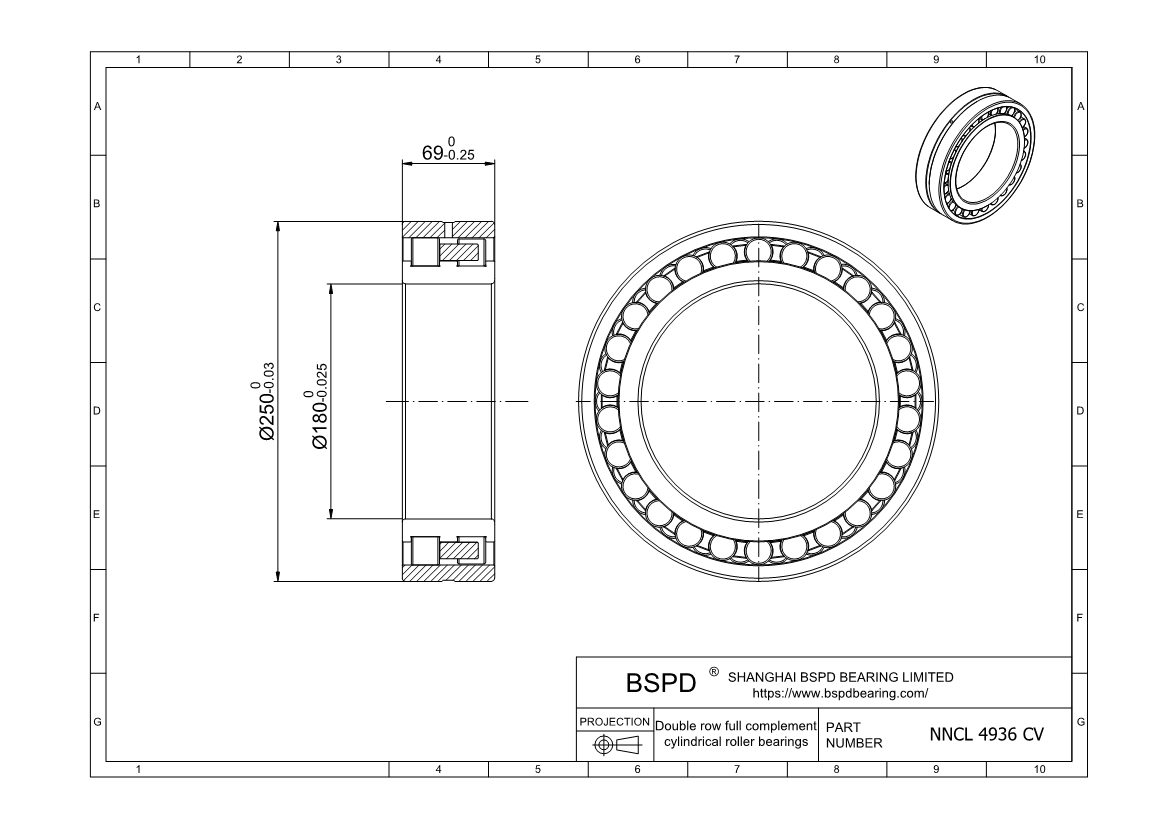

NNCL 4936 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 180 mm； Outer Diameter: 250 mm； Width (Thickness): 69 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCL 4936 CV
Bore diameter	180 mm
Outside diameter	250 mm
Width	69 mm
Basic dynamic load rating	594 kN
Basic static load rating	1220 kN
Fatigue load limit	127 kN
Reference speed	1100 r/min
Limiting speed	1400 r/min
Mass	10.5 kg
Shoulder diameter of inner ring	206 mm
Shoulder diameter of outer ring	–

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NNCL 4936 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
