NNCL 4928 CV Double row full complement cylindrical roller bearings

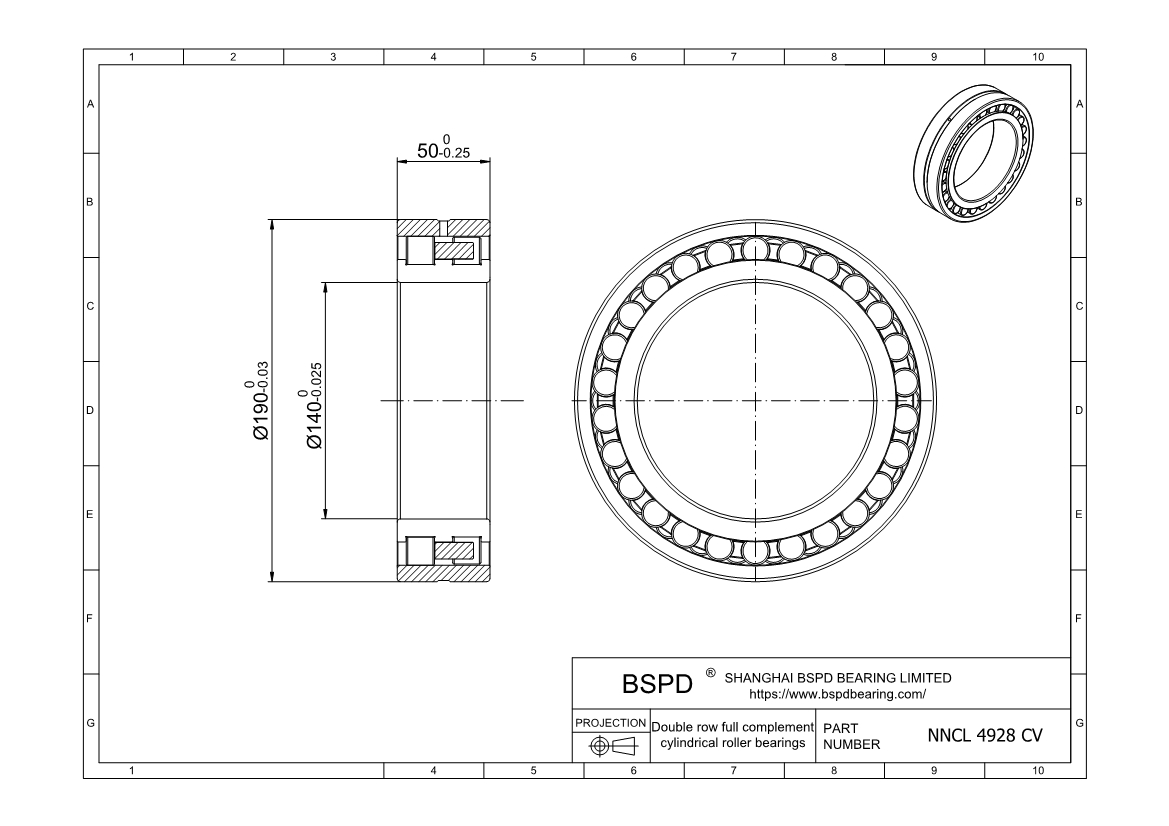

Dimensions: Bore (Inner) Diameter: 140 mm； Outer Diameter: 190 mm； Width (Thickness): 50 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCL 4928 CV
Bore diameter	140 mm
Outside diameter	190 mm
Width	50 mm
Basic dynamic load rating	308 kN
Basic static load rating	570 kN
Fatigue load limit	63 kN
Reference speed	1500 r/min
Limiting speed	1900 r/min
Mass	4.1 kg
Shoulder diameter of inner ring	160 mm
Shoulder diameter of outer ring	–

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
