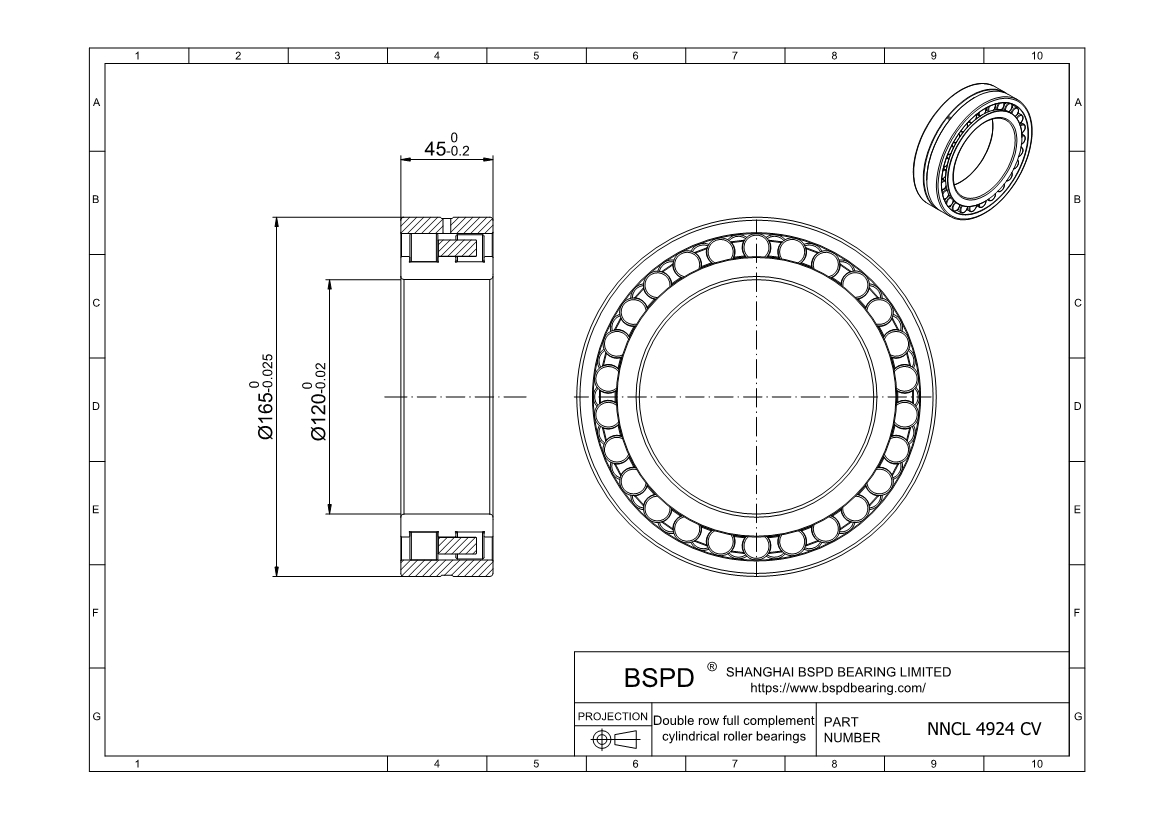

NNCL 4924 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 120 mm； Outer Diameter: 165 mm； Width (Thickness): 45 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCL 4924 CV
Bore diameter	120 mm
Outside diameter	165 mm
Width	45 mm
Basic dynamic load rating	242 kN
Basic static load rating	480 kN
Fatigue load limit	53 kN
Reference speed	1700 r/min
Limiting speed	2200 r/min
Mass	2.85 kg
Shoulder diameter of inner ring	139 mm
Shoulder diameter of outer ring	–

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
