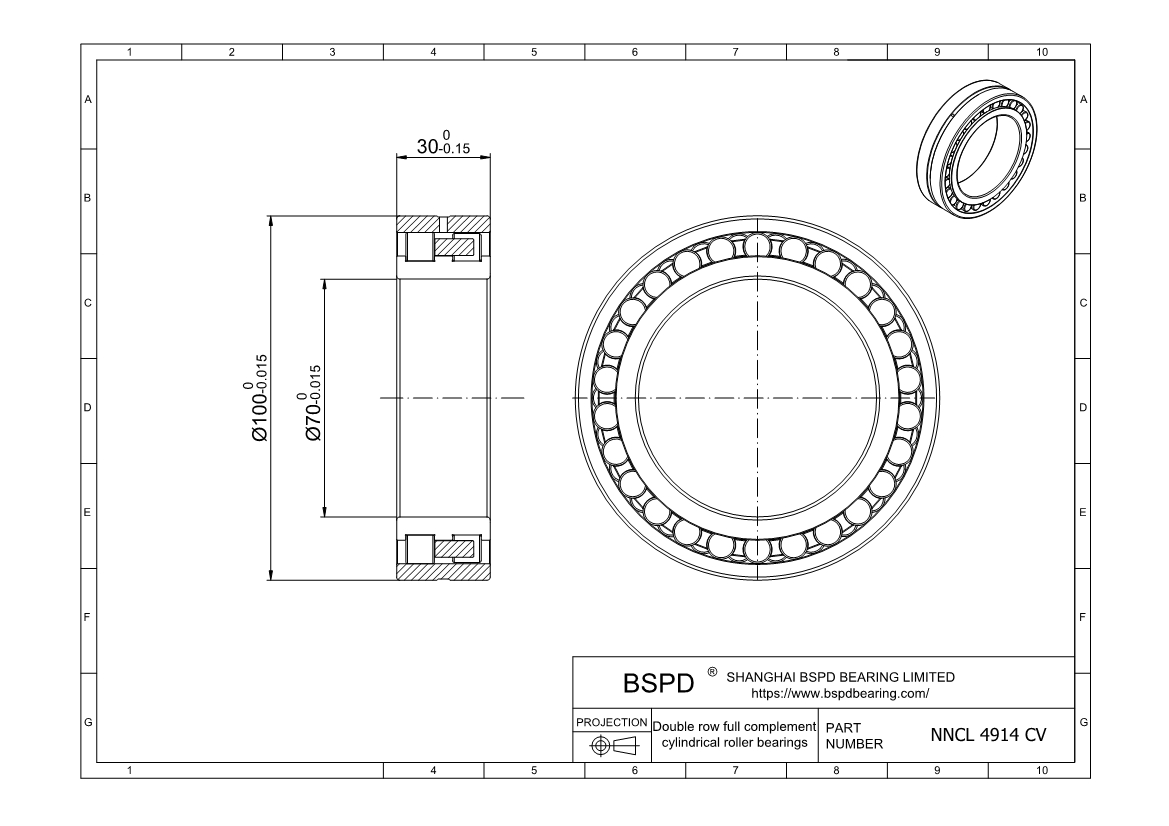

NNCL 4914 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 70 mm； Outer Diameter: 100 mm； Width (Thickness): 30 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCL 4914 CV
Bore diameter	70 mm
Outside diameter	100 mm
Width	30 mm
Basic dynamic load rating	114 kN
Basic static load rating	193 kN
Fatigue load limit	22.4 kN
Reference speed	3000 r/min
Limiting speed	3800 r/min
Mass	0.75 kg
Shoulder diameter of inner ring	83 mm
Shoulder diameter of outer ring	–
