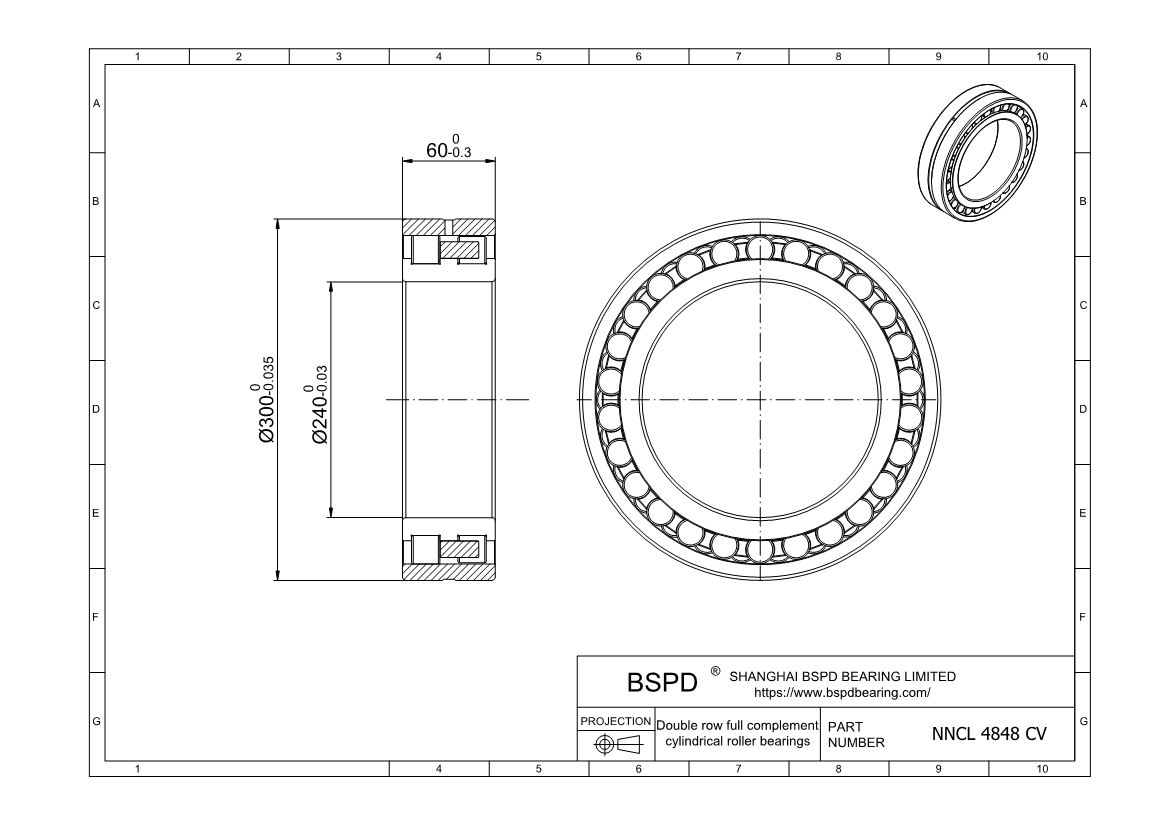

NNCL 4848 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 240 mm； Outer Diameter: 300 mm； Width (Thickness): 60 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCL 4848 CV
Bore diameter	240 mm
Outside diameter	300 mm
Width	60 mm
Basic dynamic load rating	539 kN
Basic static load rating	1290 kN
Fatigue load limit	125 kN
Reference speed	900 r/min
Limiting speed	1100 r/min
Mass	9.8 kg
Shoulder diameter of inner ring	261 mm
Shoulder diameter of outer ring	–

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NNCL 4848 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
