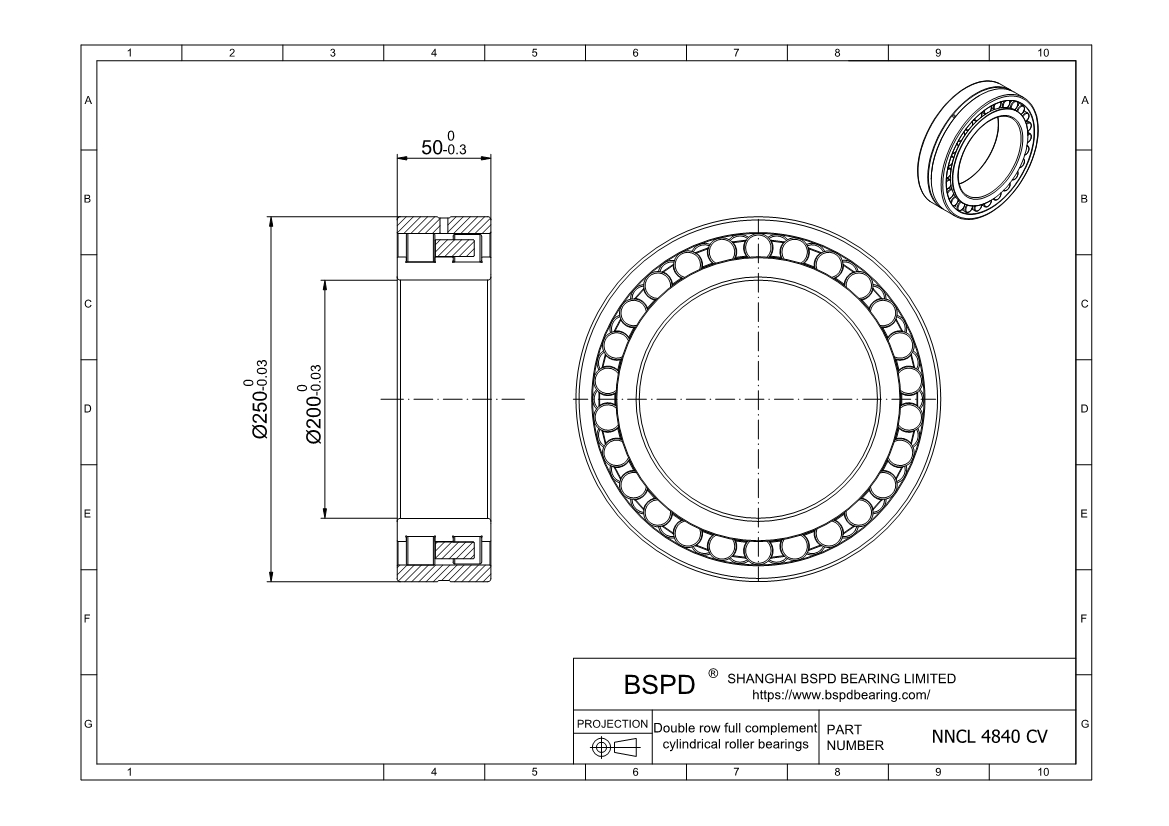

NNCL 4840 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 200 mm； Outer Diameter: 250 mm； Width (Thickness): 50 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCL 4840 CV
Bore diameter	200 mm
Outside diameter	250 mm
Width	50 mm
Basic dynamic load rating	369 kN
Basic static load rating	800 kN
Fatigue load limit	80 kN
Reference speed	1100 r/min
Limiting speed	1400 r/min
Mass	5.7 kg
Shoulder diameter of inner ring	220 mm
Shoulder diameter of outer ring	–

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
