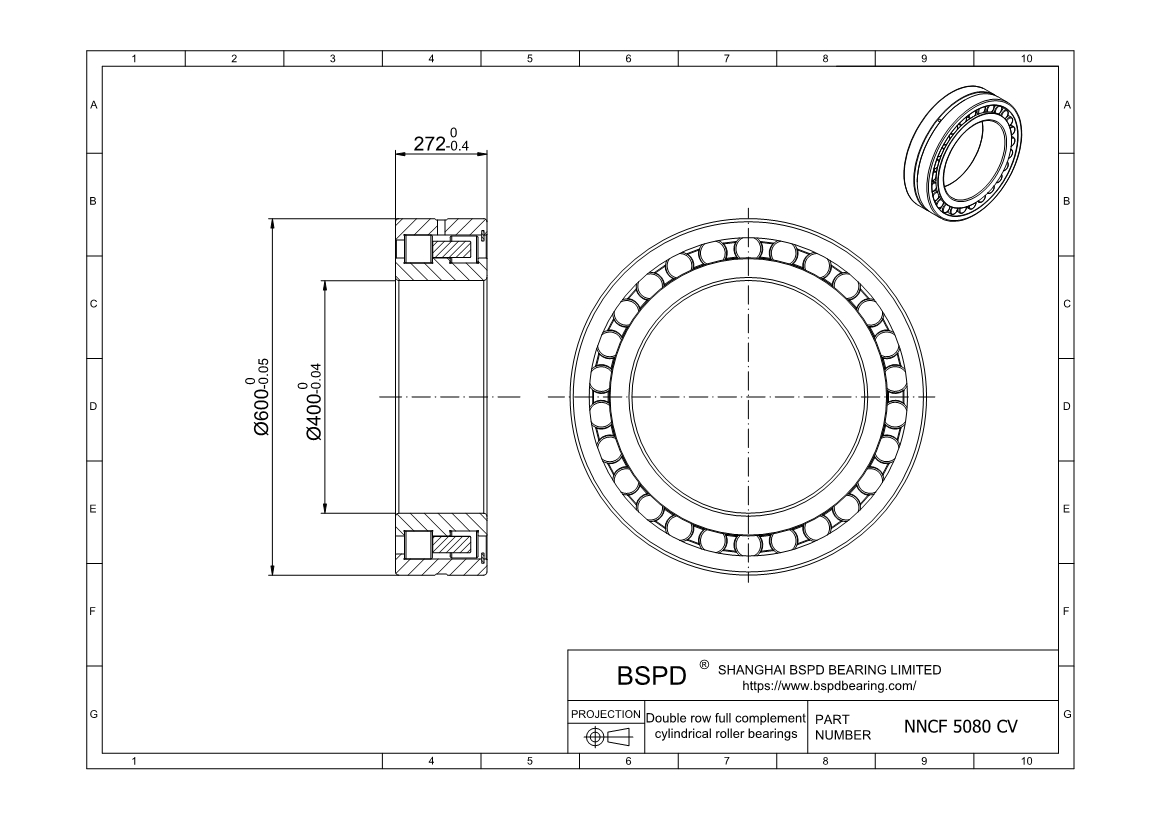

NNCF 5080 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 400 mm； Outer Diameter: 600 mm； Width (Thickness): 272 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5080 CV |
| Bore diameter | 400 mm |
| Outside diameter | 600 mm |
| Width | 272 mm |
| Basic dynamic load rating | 5500 kN |
| Basic static load rating | 11000 kN |
| Fatigue load limit | 900 kN |
| Reference speed | 450 r/min |
| Limiting speed | 560 r/min |
| Mass | 270 kg |
| Shoulder diameter of inner ring | 460 mm |
| Shoulder diameter of outer ring | 540 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5080 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
