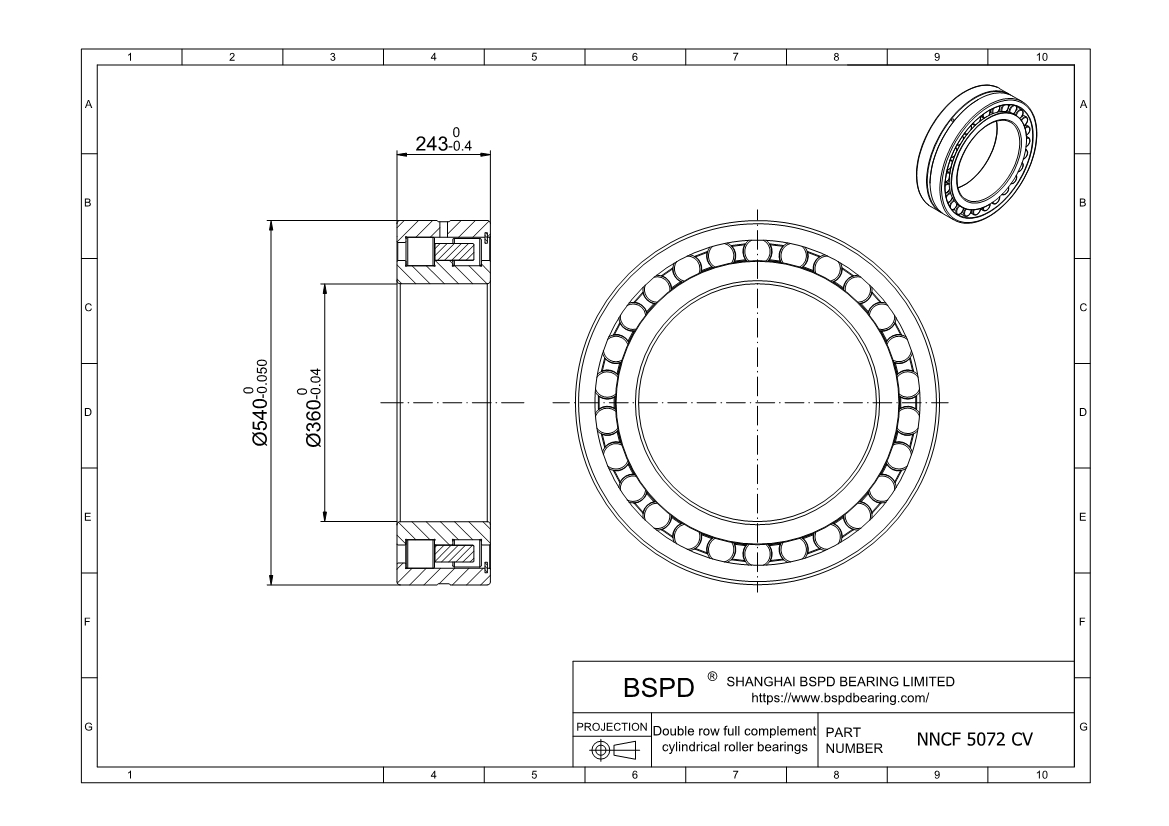

NNCF 5072 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 540 mm； Width (Thickness): 243 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5072 CV |
| Bore diameter | 360 mm |
| Outside diameter | 540 mm |
| Width | 243 mm |
| Basic dynamic load rating | 4180 kN |
| Basic static load rating | 8650 kN |
| Fatigue load limit | 735 kN |
| Reference speed | 500 r/min |
| Limiting speed | 630 r/min |
| Mass | 195 kg |
| Shoulder diameter of inner ring | 412 mm |
| Shoulder diameter of outer ring | 486 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5072 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
