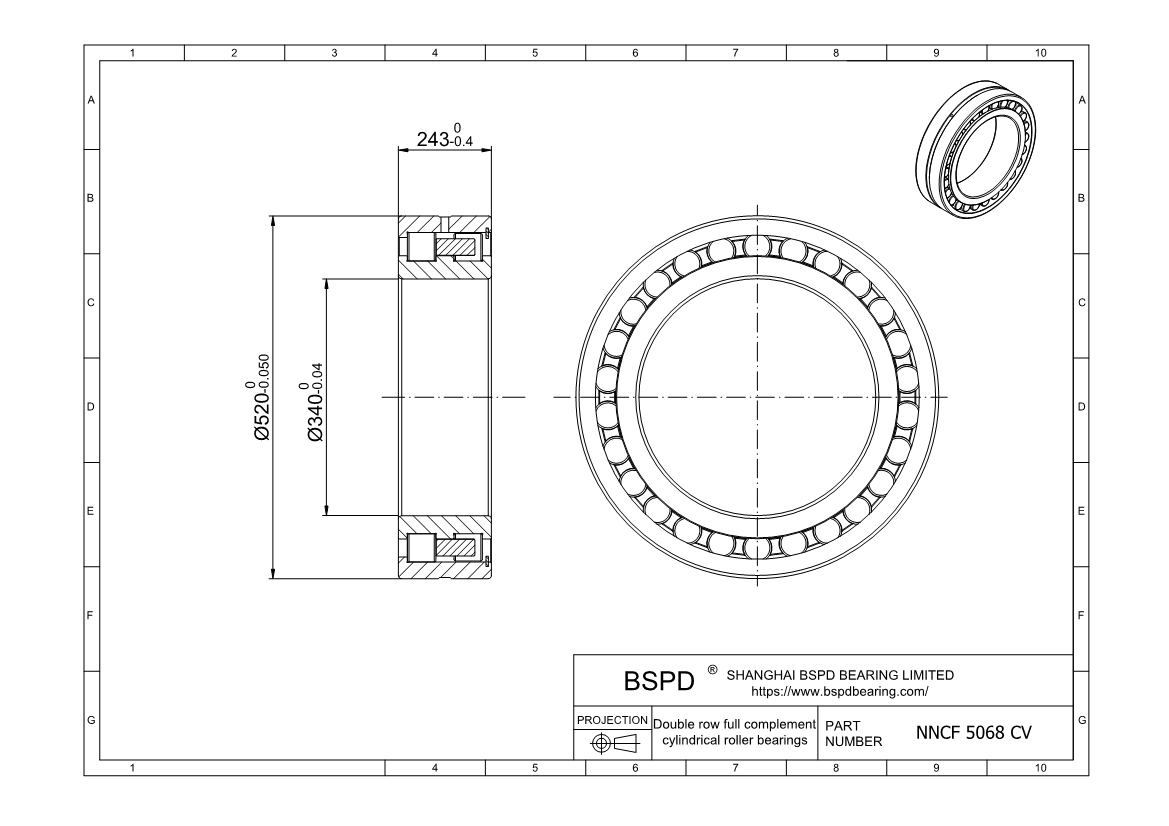

NNCF 5068 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 340 mm； Outer Diameter: 520 mm； Width (Thickness): 243 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5068 CV |
| Bore diameter | 340 mm |
| Outside diameter | 520 mm |
| Width | 243 mm |
| Basic dynamic load rating | 4400 kN |
| Basic static load rating | 8300 kN |
| Fatigue load limit | 710 kN |
| Reference speed | 530 r/min |
| Limiting speed | 670 r/min |
| Mass | 185 kg |
| Shoulder diameter of inner ring | 395 mm |
| Shoulder diameter of outer ring | 468 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5068 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
