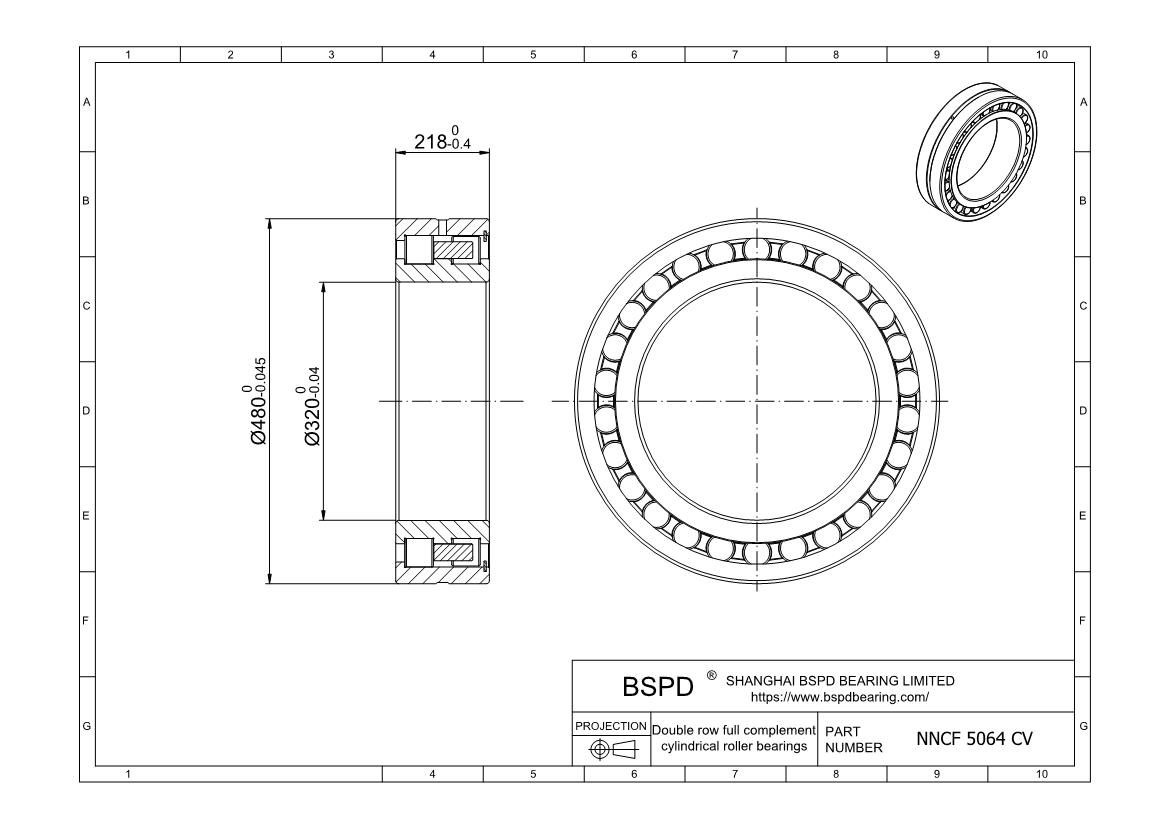

NNCF 5064 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 320 mm； Outer Diameter: 480 mm； Width (Thickness): 218 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5064 CV |
| Bore diameter | 320 mm |
| Outside diameter | 480 mm |
| Width | 218 mm |
| Basic dynamic load rating | 3690 kN |
| Basic static load rating | 6950 kN |
| Fatigue load limit | 620 kN |
| Reference speed | 560 r/min |
| Limiting speed | 700 r/min |
| Mass | 135 kg |
| Shoulder diameter of inner ring | 370 mm |
| Shoulder diameter of outer ring | 434 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5064 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
