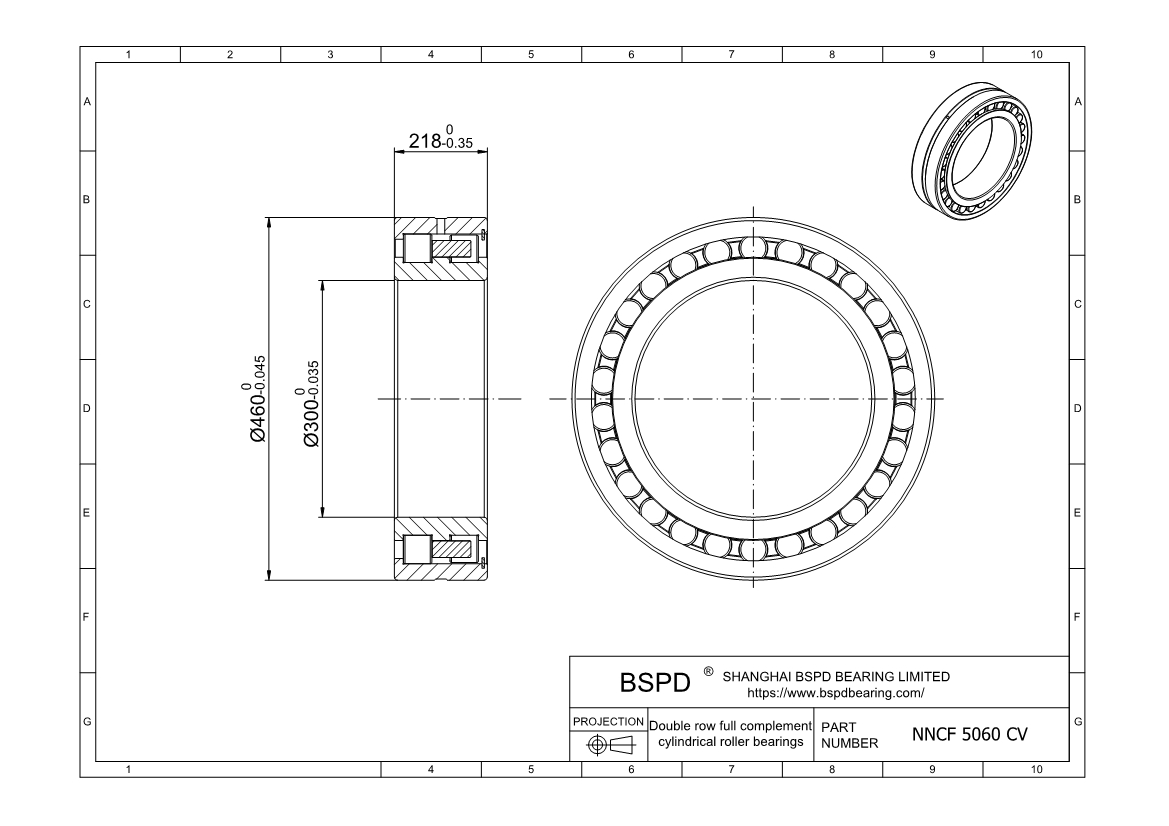

NNCF 5060 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 460 mm； Width (Thickness): 218 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5060 CV |
| Bore diameter | 300 mm |
| Outside diameter | 460 mm |
| Width | 218 mm |
| Basic dynamic load rating | 3520 kN |
| Basic static load rating | 6550 kN |
| Fatigue load limit | 600 kN |
| Reference speed | 600 r/min |
| Limiting speed | 750 r/min |
| Mass | 130 kg |
| Shoulder diameter of inner ring | 352 mm |
| Shoulder diameter of outer ring | 418 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5060 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
