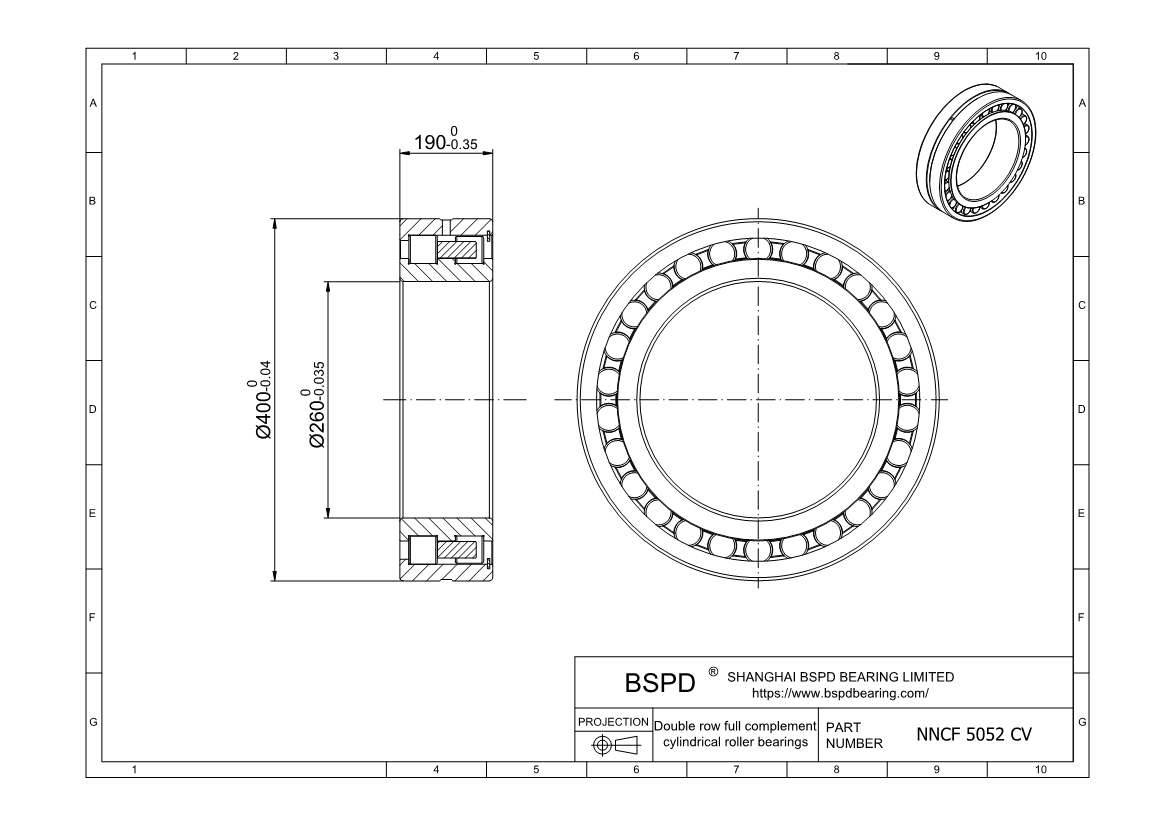

NNCF 5052 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 260 mm； Outer Diameter: 400 mm； Width (Thickness): 190 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5052 CV |
| Bore diameter | 260 mm |
| Outside diameter | 400 mm |
| Width | 190 mm |
| Basic dynamic load rating | 2860 kN |
| Basic static load rating | 5100 kN |
| Fatigue load limit | 500 kN |
| Reference speed | 700 r/min |
| Limiting speed | 900 r/min |
| Mass | 85.5 kg |
| Shoulder diameter of inner ring | 302 mm |
| Shoulder diameter of outer ring | 362 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5052 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
