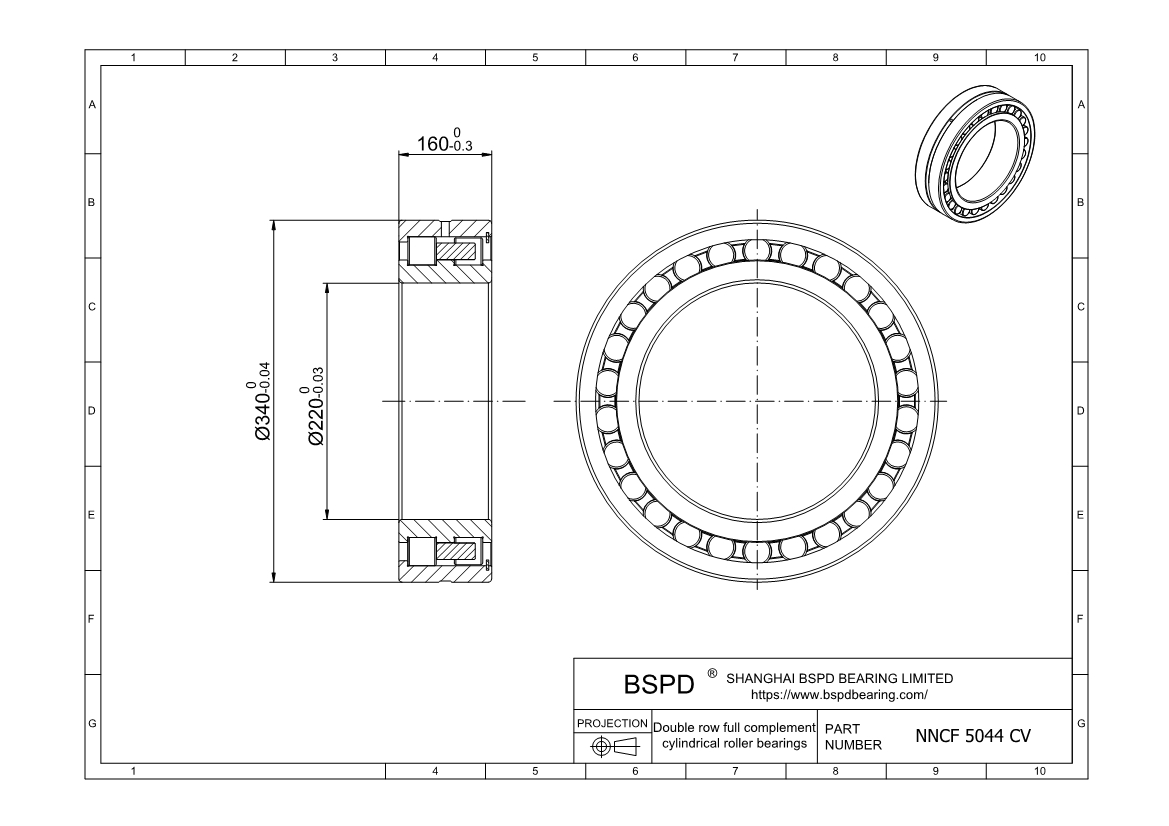

NNCF 5044 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 220 mm； Outer Diameter: 340 mm； Width (Thickness): 160 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5044 CV |
| Bore diameter | 220 mm |
| Outside diameter | 340 mm |
| Width | 160 mm |
| Basic dynamic load rating | 2010 kN |
| Basic static load rating | 3600 kN |
| Fatigue load limit | 375 kN |
| Reference speed | 850 r/min |
| Limiting speed | 1100 r/min |
| Mass | 52.5 kg |
| Shoulder diameter of inner ring | 255 mm |
| Shoulder diameter of outer ring | 302 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5044 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
