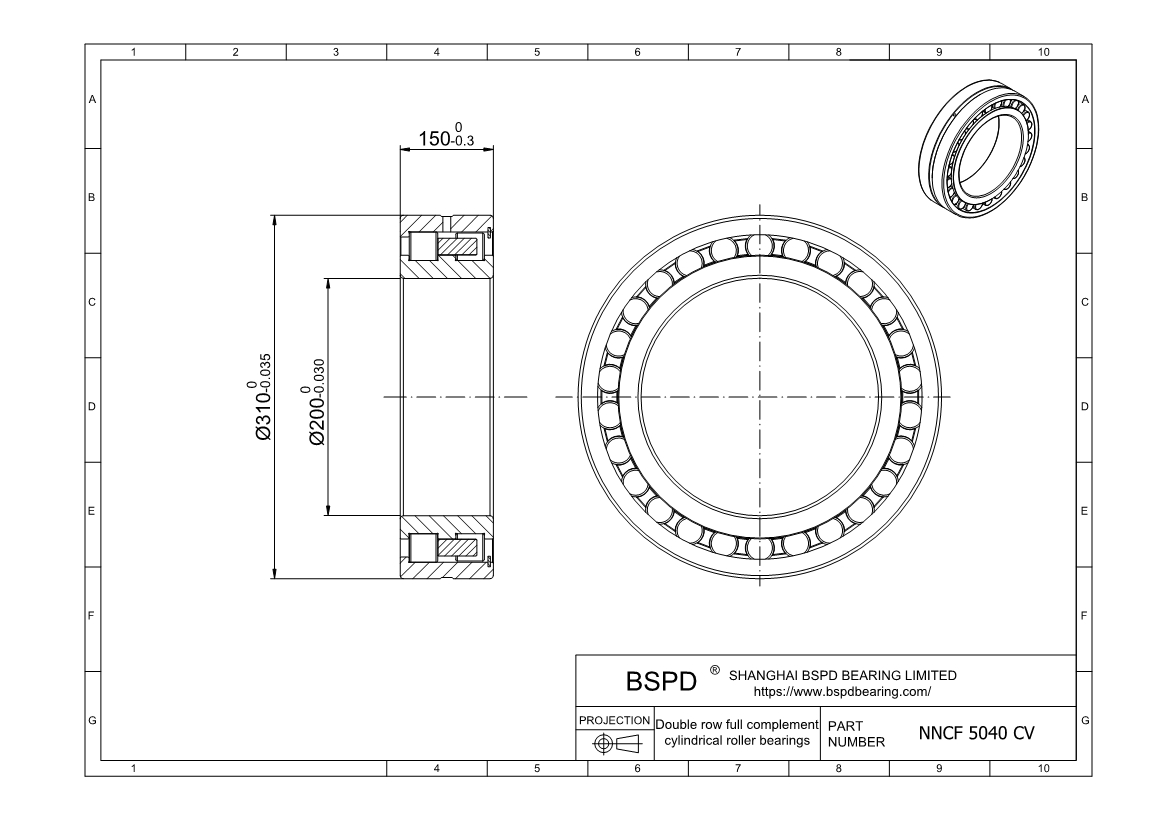

NNCF 5040 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 200 mm； Outer Diameter: 310 mm； Width (Thickness): 150 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCF 5040 CV
Bore diameter	200 mm
Outside diameter	310 mm
Width	150 mm
Basic dynamic load rating	1680 kN
Basic static load rating	3050 kN
Fatigue load limit	320 kN
Reference speed	950 r/min
Limiting speed	1200 r/min
Mass	41 kg
Shoulder diameter of inner ring	237 mm
Shoulder diameter of outer ring	275 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NNCF 5040 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
