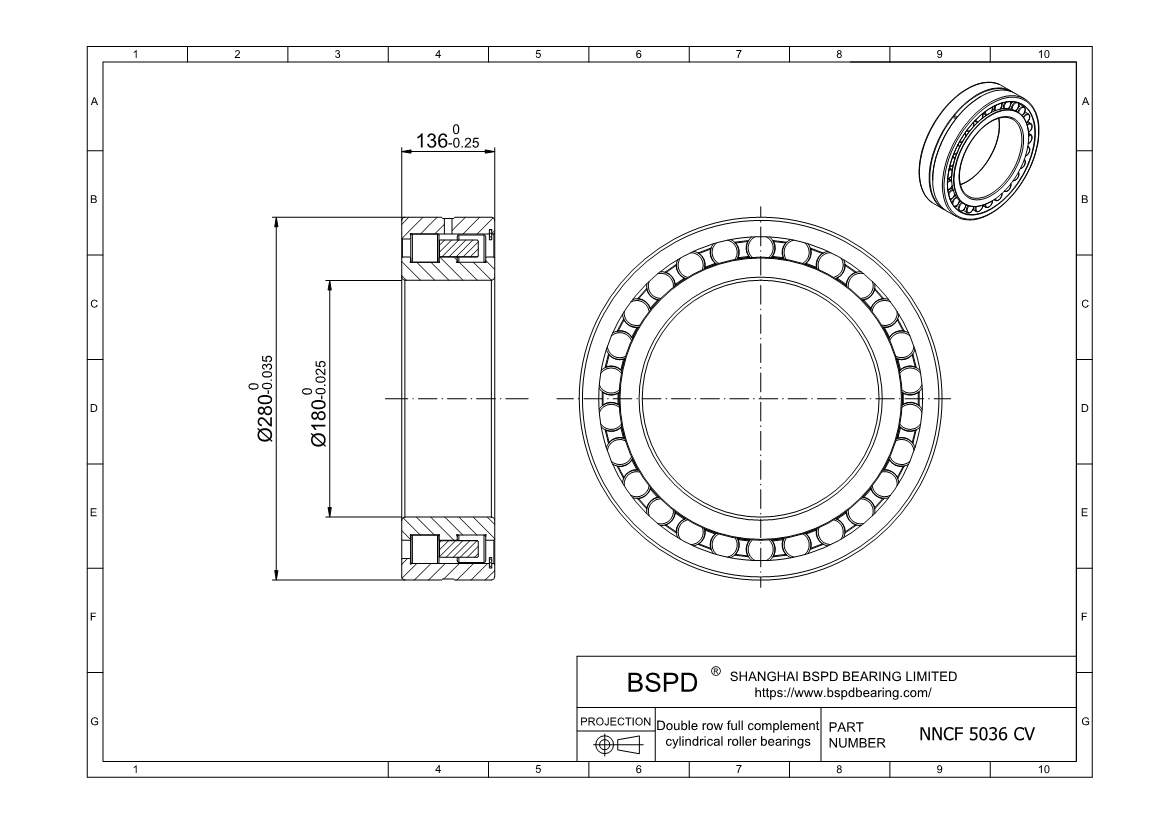

NNCF 5036 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 180 mm； Outer Diameter: 280 mm； Width (Thickness): 136 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5036 CV |
| Bore diameter | 180 mm |
| Outside diameter | 280 mm |
| Width | 136 mm |
| Basic dynamic load rating | 1420 kN |
| Basic static load rating | 2500 kN |
| Fatigue load limit | 270 kN |
| Reference speed | 1100 r/min |
| Limiting speed | 1300 r/min |
| Mass | 30.5 kg |
| Shoulder diameter of inner ring | 212 mm |
| Shoulder diameter of outer ring | 248 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5036 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
