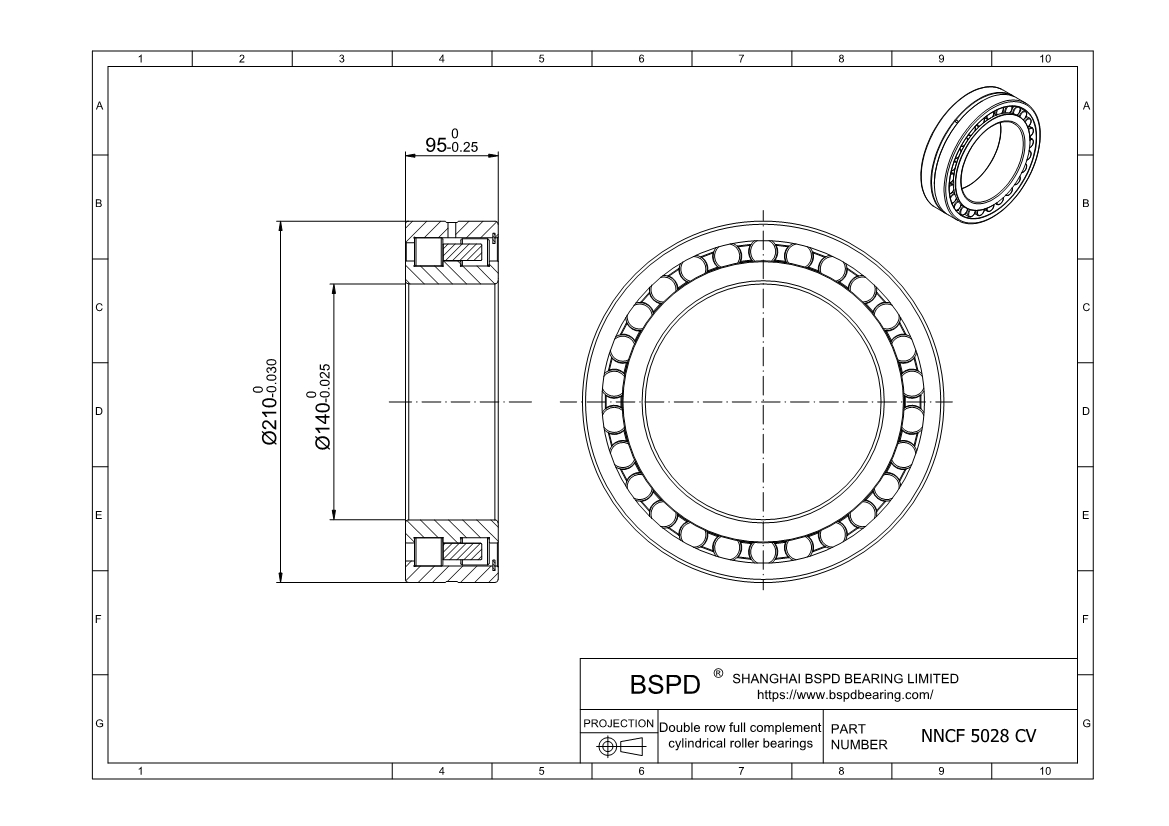

NNCF 5028 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 140 mm； Outer Diameter: 210 mm； Width (Thickness): 95 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5028 CV |
| Bore diameter | 140 mm |
| Outside diameter | 210 mm |
| Width | 95 mm |
| Basic dynamic load rating | 809 kN |
| Basic static load rating | 1370 kN |
| Fatigue load limit | 153 kN |
| Reference speed | 1400 r/min |
| Limiting speed | 1800 r/min |
| Mass | 11 kg |
| Shoulder diameter of inner ring | 163 mm |
| Shoulder diameter of outer ring | 189 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5028 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
