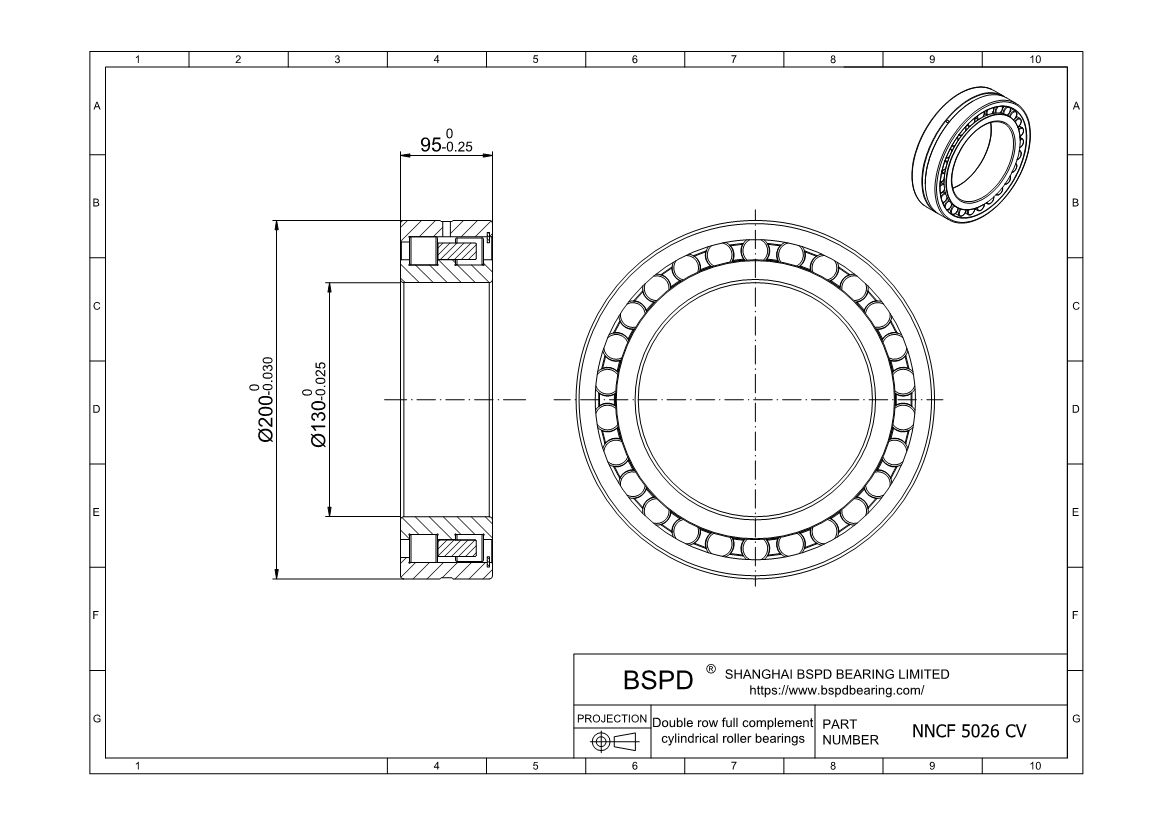

NNCF 5026 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 130 mm； Outer Diameter: 200 mm； Width (Thickness): 95 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5026 CV |
| Bore diameter | 130 mm |
| Outside diameter | 200 mm |
| Width | 95 mm |
| Basic dynamic load rating | 765 kN |
| Basic static load rating | 1250 kN |
| Fatigue load limit | 143 kN |
| Reference speed | 1500 r/min |
| Limiting speed | 1900 r/min |
| Mass | 10 kg |
| Shoulder diameter of inner ring | 149 mm |
| Shoulder diameter of outer ring | 175 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5026 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
