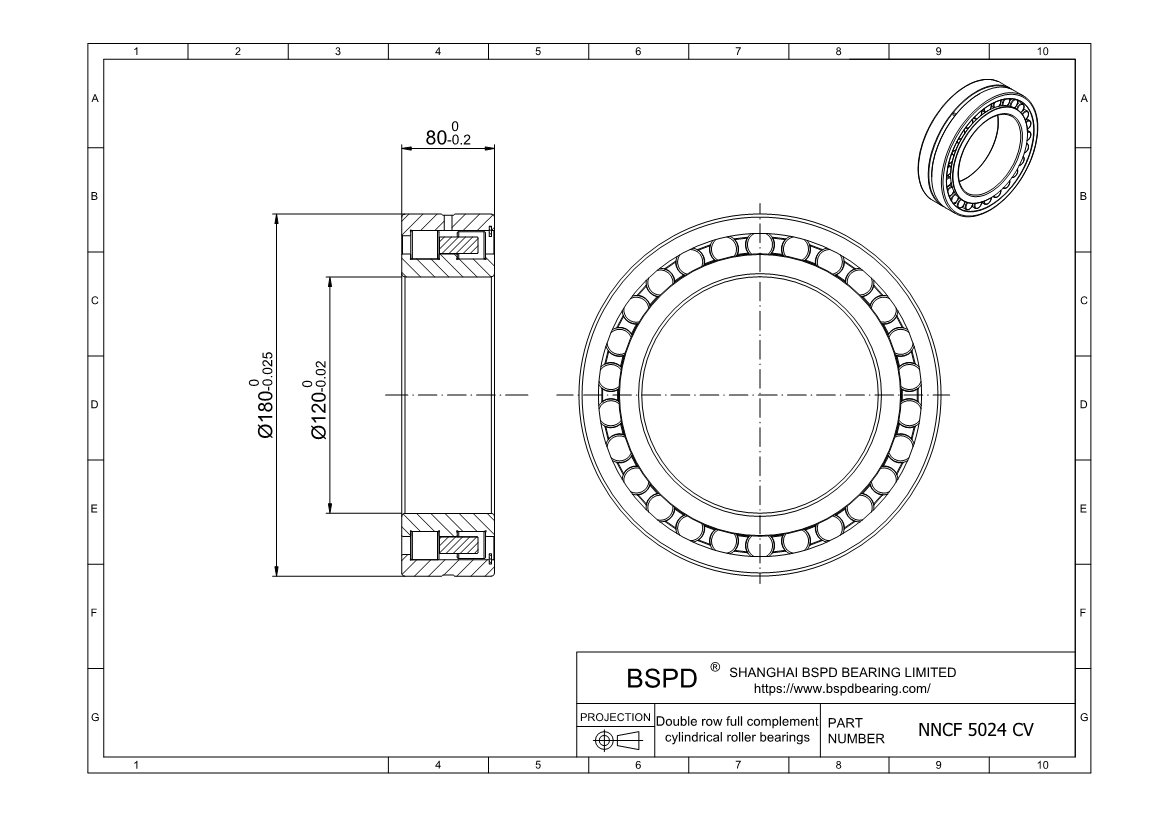

NNCF 5024 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 120 mm； Outer Diameter: 180 mm； Width (Thickness): 80 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCF 5024 CV
Bore diameter	120 mm
Outside diameter	180 mm
Width	80 mm
Basic dynamic load rating	539 kN
Basic static load rating	880 kN
Fatigue load limit	104 kN
Reference speed	1700 r/min
Limiting speed	2000 r/min
Mass	6.75 kg
Shoulder diameter of inner ring	139 mm
Shoulder diameter of outer ring	160 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NNCF 5024 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
