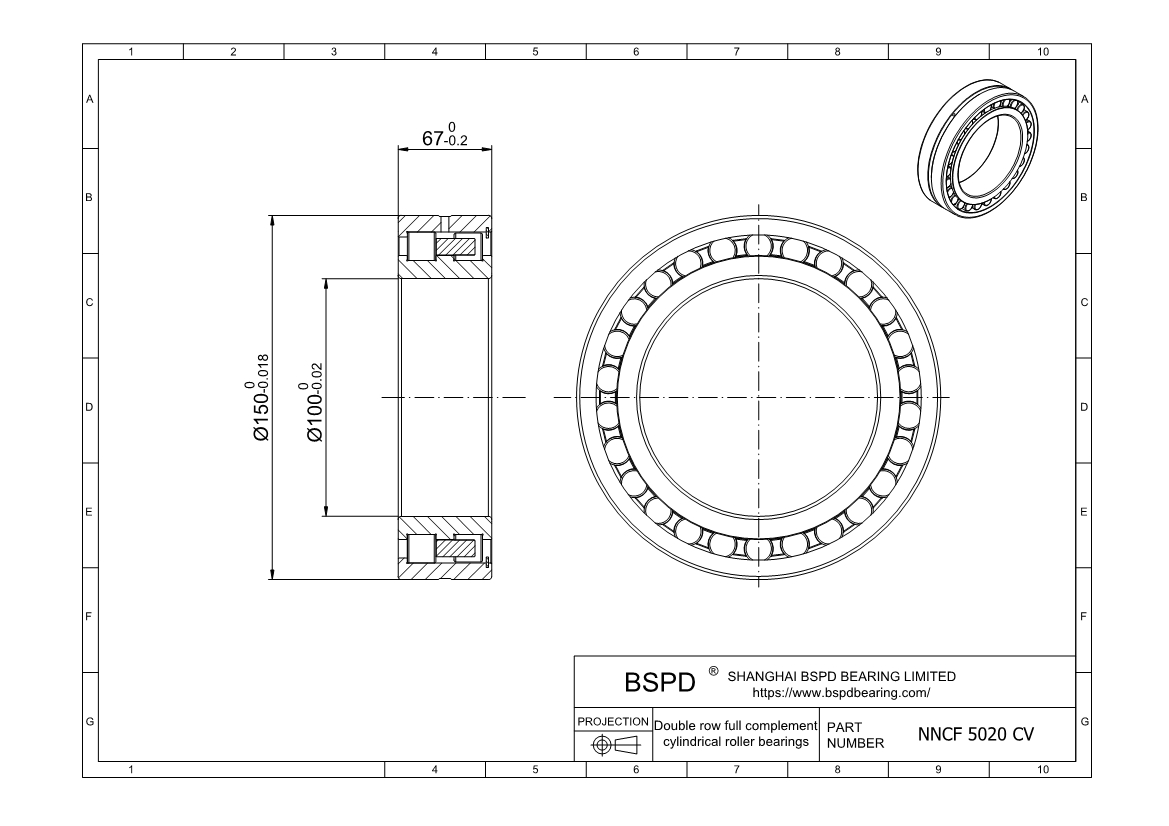

NNCF 5020 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 150 mm； Width (Thickness): 67 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCF 5020 CV
Bore diameter	100 mm
Outside diameter	150 mm
Width	67 mm
Basic dynamic load rating	391 kN
Basic static load rating	620 kN
Fatigue load limit	75 kN
Reference speed	2000 r/min
Limiting speed	2600 r/min
Mass	3.95 kg
Shoulder diameter of inner ring	116 mm
Shoulder diameter of outer ring	134 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NNCF 5020 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
