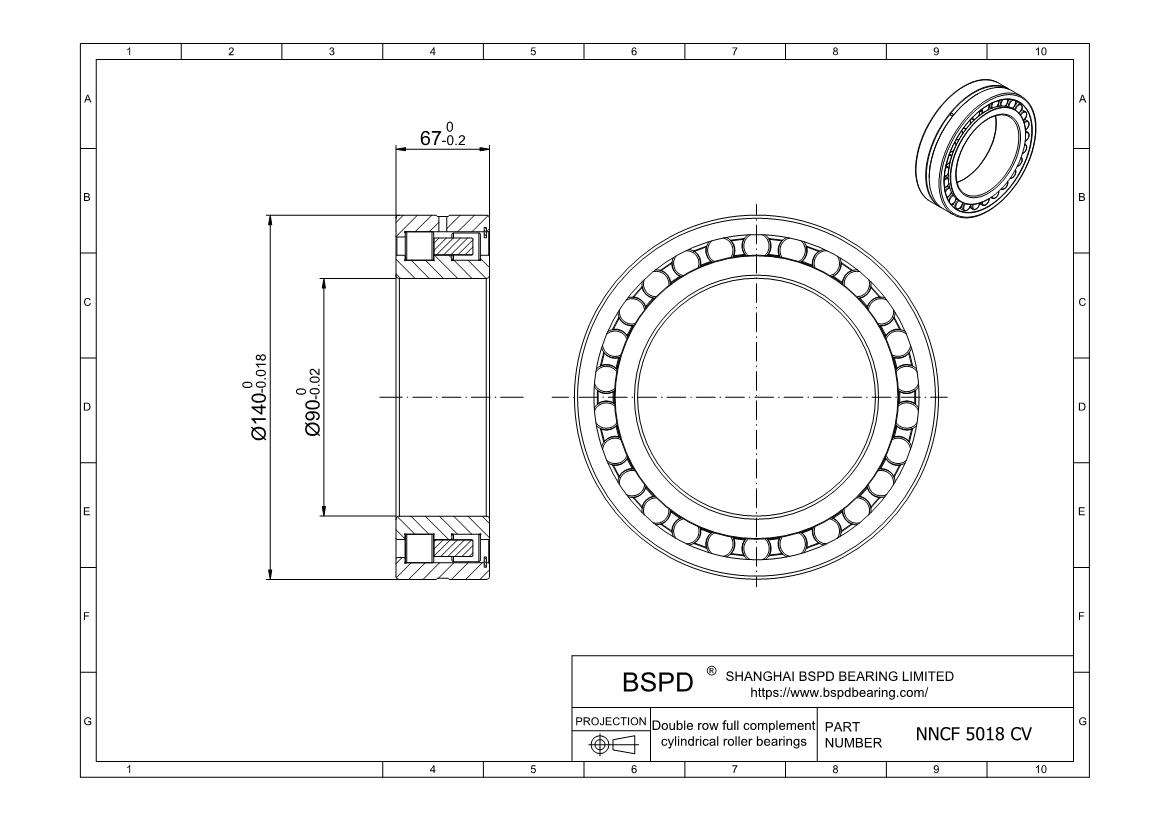

NNCF 5018 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 140 mm； Width (Thickness): 67 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCF 5018 CV
Bore diameter	90 mm
Outside diameter	140 mm
Width	67 mm
Basic dynamic load rating	369 kN
Basic static load rating	560 kN
Fatigue load limit	69.5 kN
Reference speed	2200 r/min
Limiting speed	2800 r/min
Mass	3.6 kg
Shoulder diameter of inner ring	106 mm
Shoulder diameter of outer ring	124 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NNCF 5018 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
