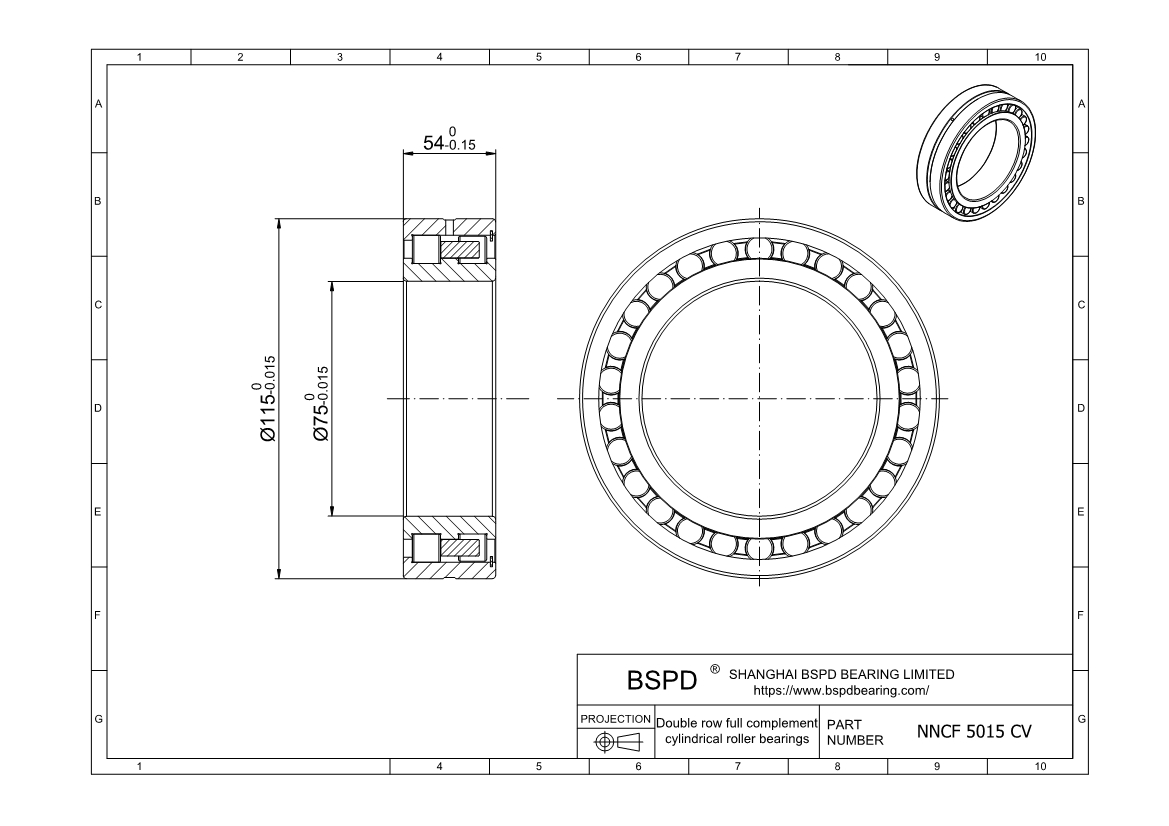

NNCF 5015 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 75 mm； Outer Diameter: 115 mm； Width (Thickness): 54 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5015 CV |
| Bore diameter | 75 mm |
| Outside diameter | 115 mm |
| Width | 54 mm |
| Basic dynamic load rating | 251 kN |
| Basic static load rating | 380 kN |
| Fatigue load limit | 49 kN |
| Reference speed | 2600 r/min |
| Limiting speed | 3200 r/min |
| Mass | 1.95 kg |
| Shoulder diameter of inner ring | 89 mm |
| Shoulder diameter of outer ring | 103 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5015 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
