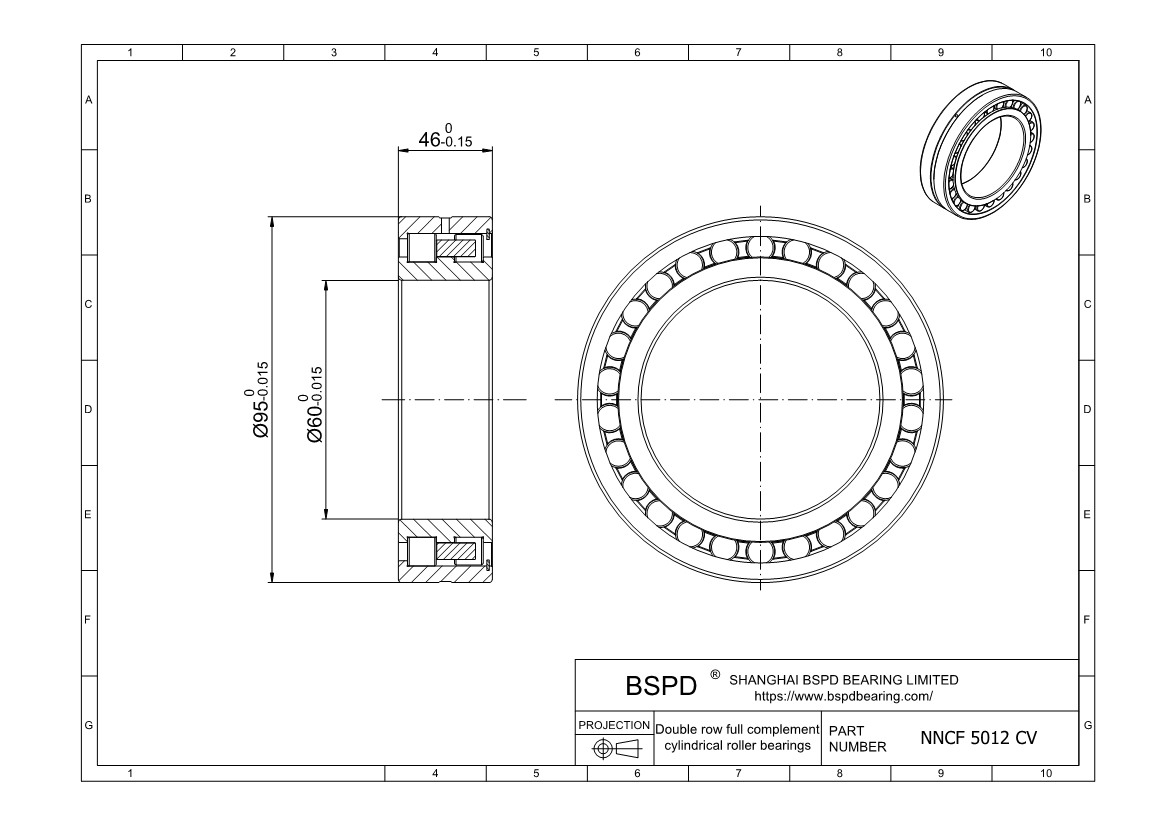

NNCF 5012 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 95 mm； Width (Thickness): 46 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5012 CV |
| Bore diameter | 60 mm |
| Outside diameter | 95 mm |
| Width | 46 mm |
| Basic dynamic load rating | 198 kN |
| Basic static load rating | 300 kN |
| Fatigue load limit | 36.5 kN |
| Reference speed | 3400 r/min |
| Limiting speed | 4000 r/min |
| Mass | 1.25 kg |
| Shoulder diameter of inner ring | 71.5 mm |
| Shoulder diameter of outer ring | 82 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5012 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
