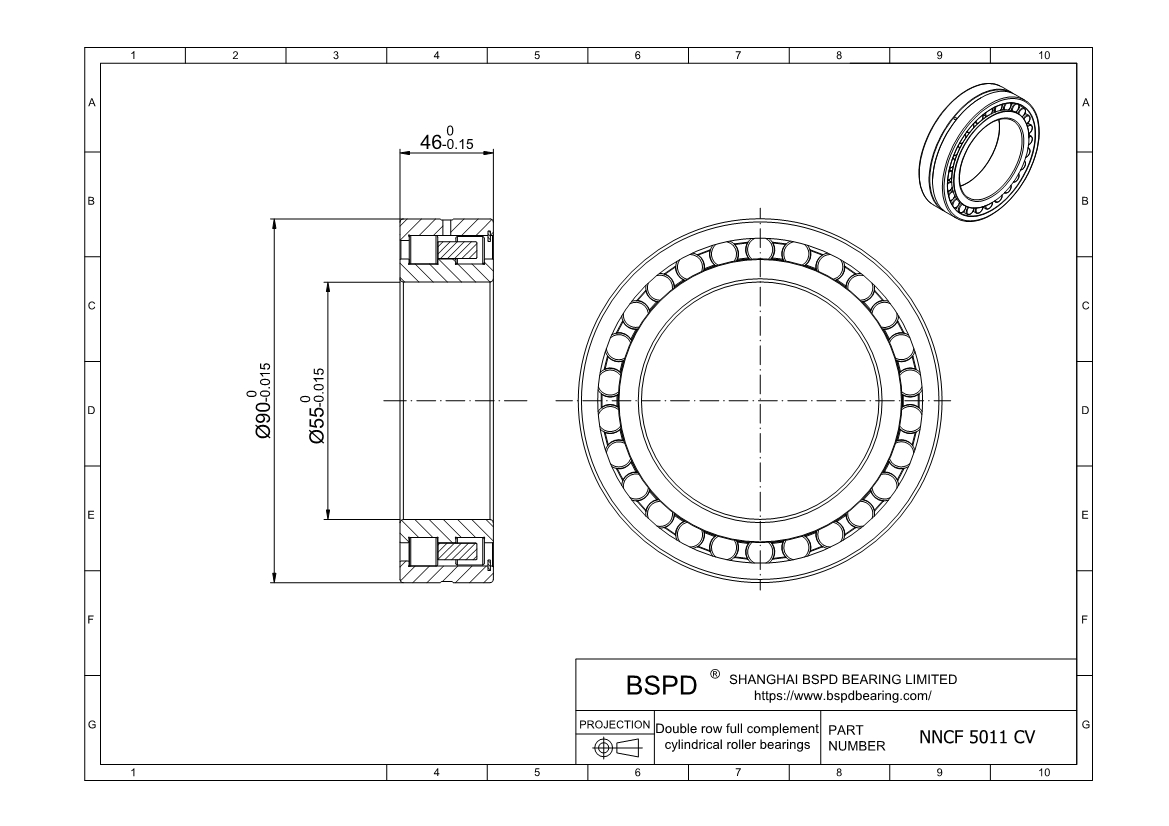

NNCF 5011 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 55 mm； Outer Diameter: 90 mm； Width (Thickness): 46 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCF 5011 CV
Bore diameter	55 mm
Outside diameter	90 mm
Width	46 mm
Basic dynamic load rating	190 kN
Basic static load rating	280 kN
Fatigue load limit	34.5 kN
Reference speed	3400 r/min
Limiting speed	4300 r/min
Mass	1.15 kg
Shoulder diameter of inner ring	68.5 mm
Shoulder diameter of outer ring	78.7 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
