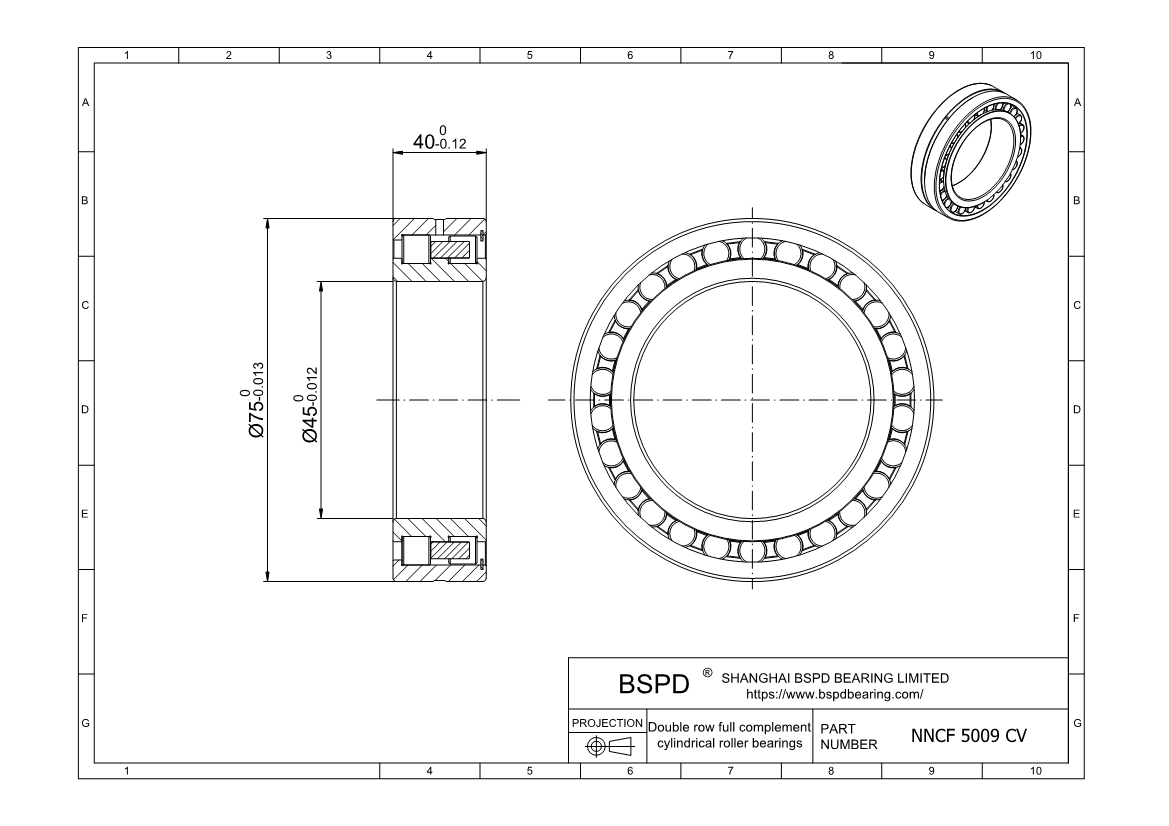

NNCF 5009 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 45 mm； Outer Diameter: 75 mm； Width (Thickness): 40 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5009 CV |
| Bore diameter | 45 mm |
| Outside diameter | 75 mm |
| Width | 40 mm |
| Basic dynamic load rating | 112 kN |
| Basic static load rating | 156 kN |
| Fatigue load limit | 18.3 kN |
| Reference speed | 4300 r/min |
| Limiting speed | 5300 r/min |
| Mass | 0.71 kg |
| Shoulder diameter of inner ring | 55.3 mm |
| Shoulder diameter of outer ring | 62.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5009 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
