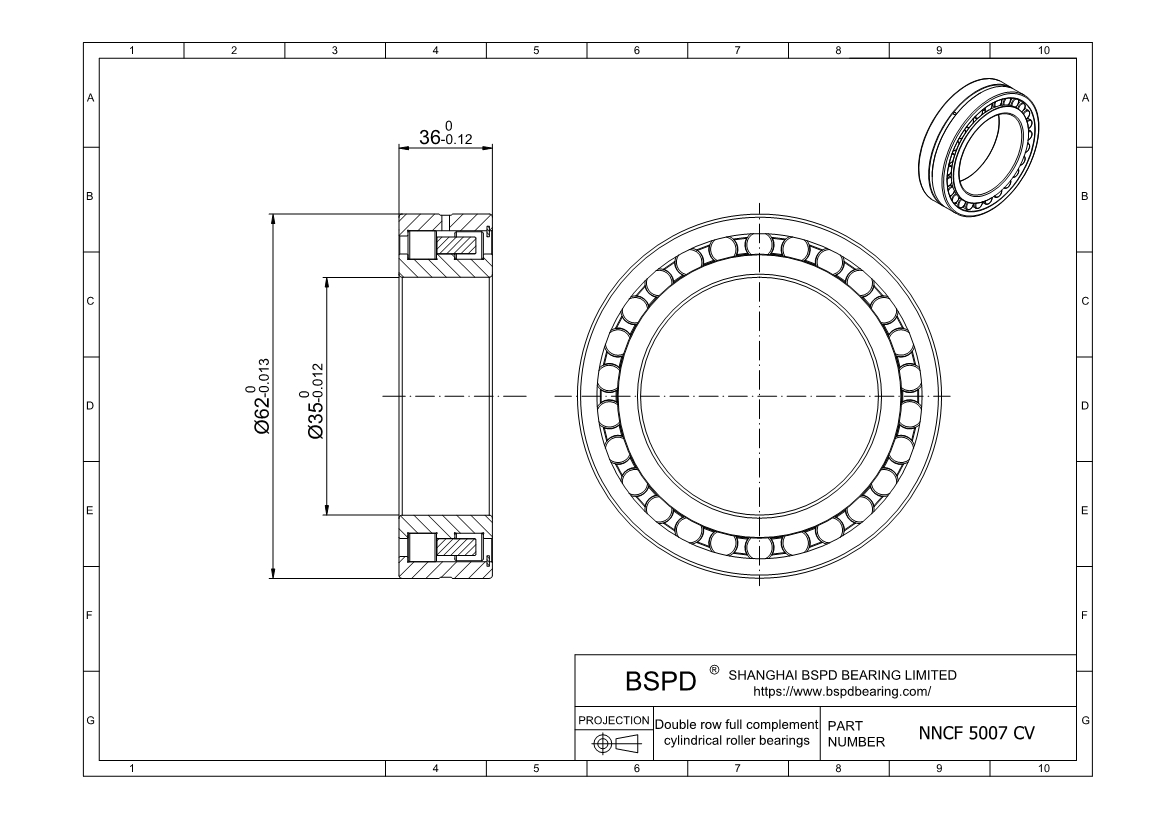

NNCF 5007 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 35 mm； Outer Diameter: 62 mm； Width (Thickness): 36 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5007 CV |
| Bore diameter | 35 mm |
| Outside diameter | 62 mm |
| Width | 36 mm |
| Basic dynamic load rating | 89.7 kN |
| Basic static load rating | 112 kN |
| Fatigue load limit | 12.9 kN |
| Reference speed | 5300 r/min |
| Limiting speed | 6700 r/min |
| Mass | 0.46 kg |
| Shoulder diameter of inner ring | 45 mm |
| Shoulder diameter of outer ring | 51.5 mm |
Print PDF
Request a 3D CAD Model
