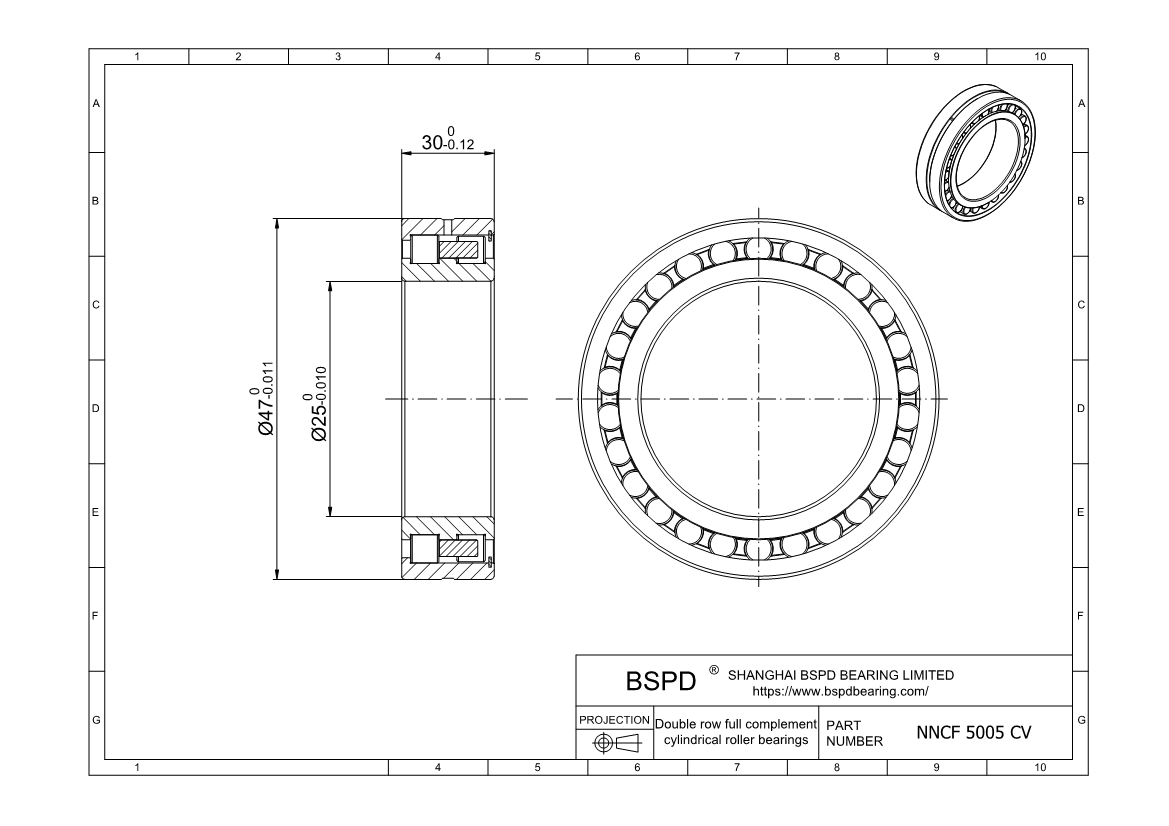

NNCF 5005 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 25 mm； Outer Diameter: 47 mm； Width (Thickness): 30 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5005 CV |
| Bore diameter | 25 mm |
| Outside diameter | 47 mm |
| Width | 30 mm |
| Basic dynamic load rating | 59.4 kN |
| Basic static load rating | 71 kN |
| Fatigue load limit | 7.65 kN |
| Reference speed | 7000 r/min |
| Limiting speed | 9000 r/min |
| Mass | 0.23 kg |
| Shoulder diameter of inner ring | 34.5 mm |
| Shoulder diameter of outer ring | 38.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5005 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
