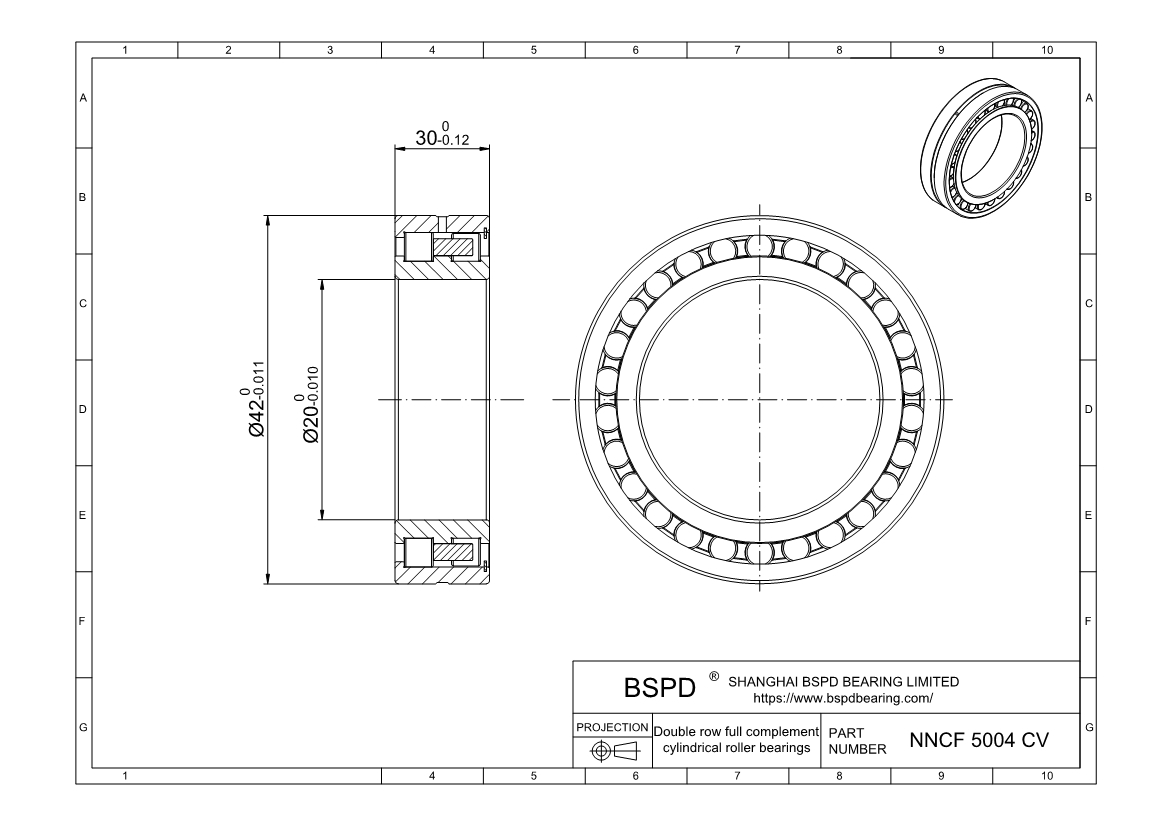

NNCF 5004 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 20 mm； Outer Diameter: 42 mm； Width (Thickness): 30 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCF 5004 CV
Bore diameter	20 mm
Outside diameter	42 mm
Width	30 mm
Basic dynamic load rating	52.3 kN
Basic static load rating	57 kN
Fatigue load limit	6.2 kN
Reference speed	8500 r/min
Limiting speed	10000 r/min
Mass	0.2 kg
Shoulder diameter of inner ring	28.4 mm
Shoulder diameter of outer ring	33.2 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NNCF 5004 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
