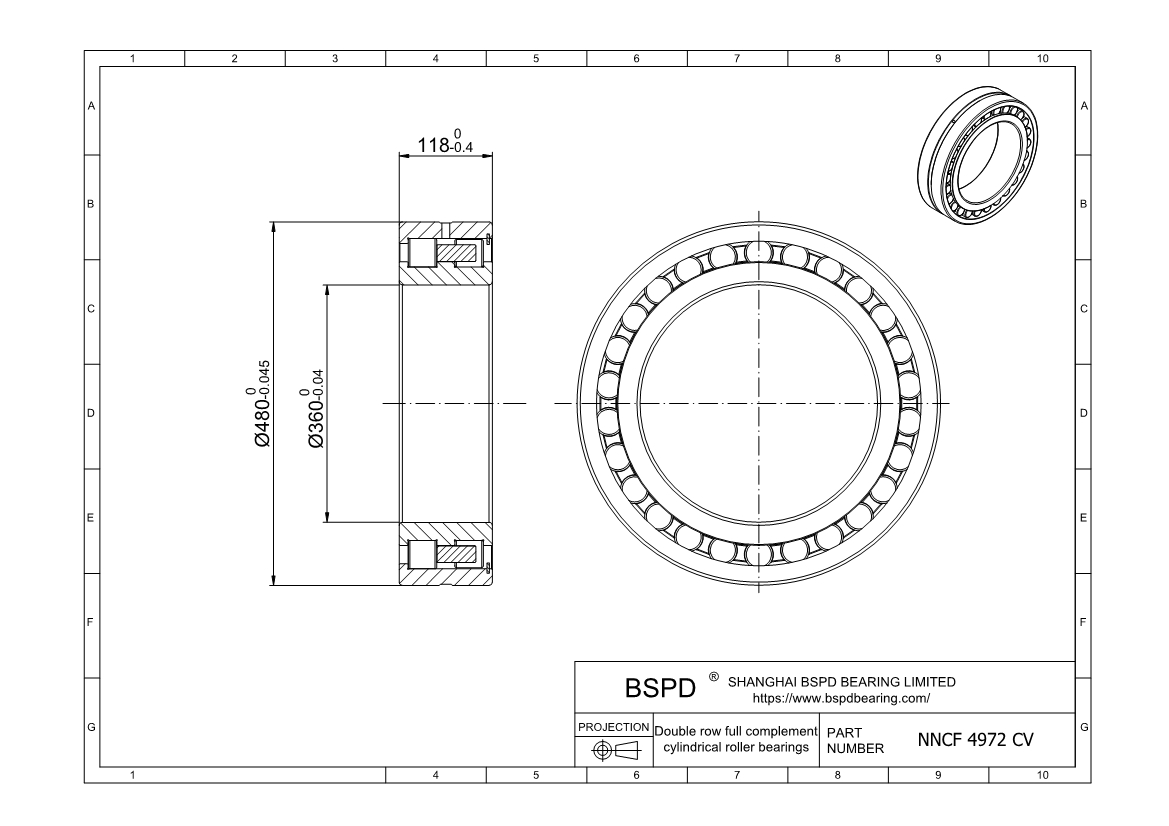

NNCF 4972 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 480 mm； Width (Thickness): 118 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 4972 CV |
| Bore diameter | 360 mm |
| Outside diameter | 480 mm |
| Width | 118 mm |
| Basic dynamic load rating | 1830 kN |
| Basic static load rating | 4500 kN |
| Fatigue load limit | 405 kN |
| Reference speed | 530 r/min |
| Limiting speed | 670 r/min |
| Mass | 61.5 kg |
| Shoulder diameter of inner ring | 404 mm |
| Shoulder diameter of outer ring | 437 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 4972 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
