NNCF 4930 CV Double row full complement cylindrical roller bearings

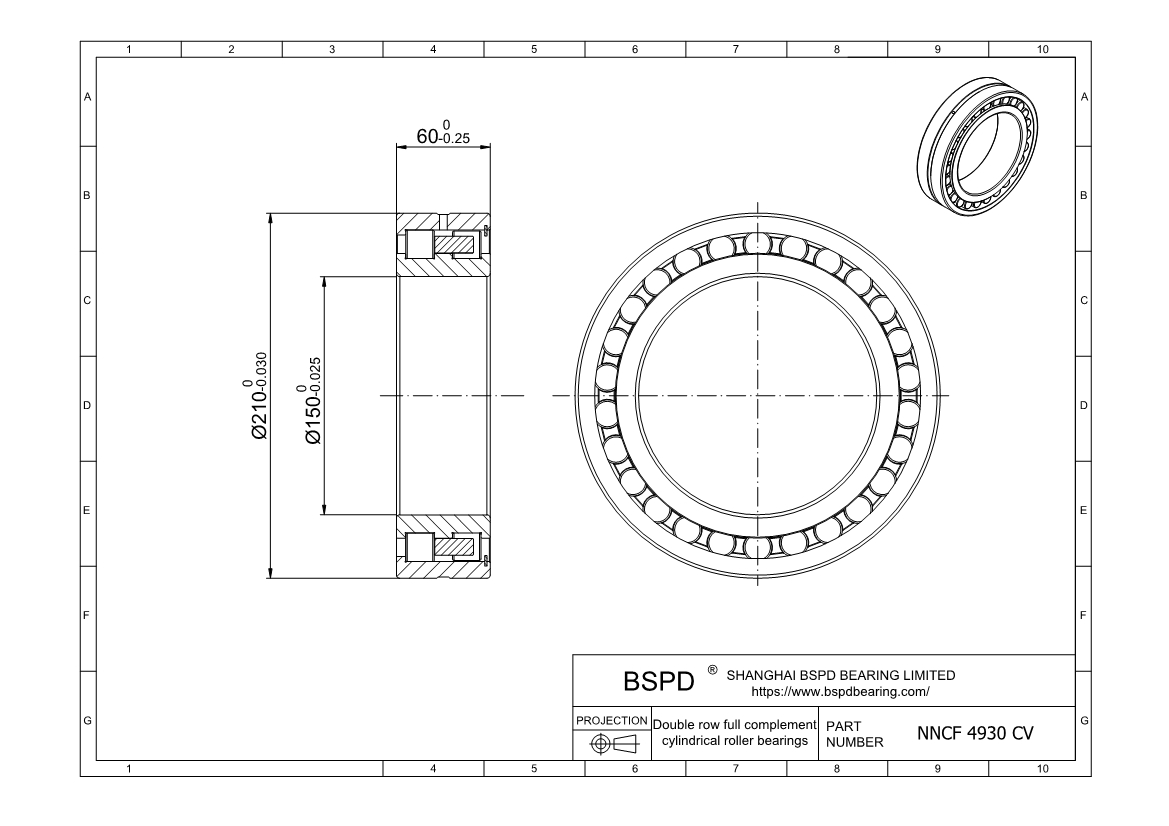

Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 210 mm； Width (Thickness): 60 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCF 4930 CV
Bore diameter	150 mm
Outside diameter	210 mm
Width	60 mm
Basic dynamic load rating	429 kN
Basic static load rating	830 kN
Fatigue load limit	91.5 kN
Reference speed	1400 r/min
Limiting speed	1700 r/min
Mass	6.55 kg
Shoulder diameter of inner ring	171 mm
Shoulder diameter of outer ring	187 mm
