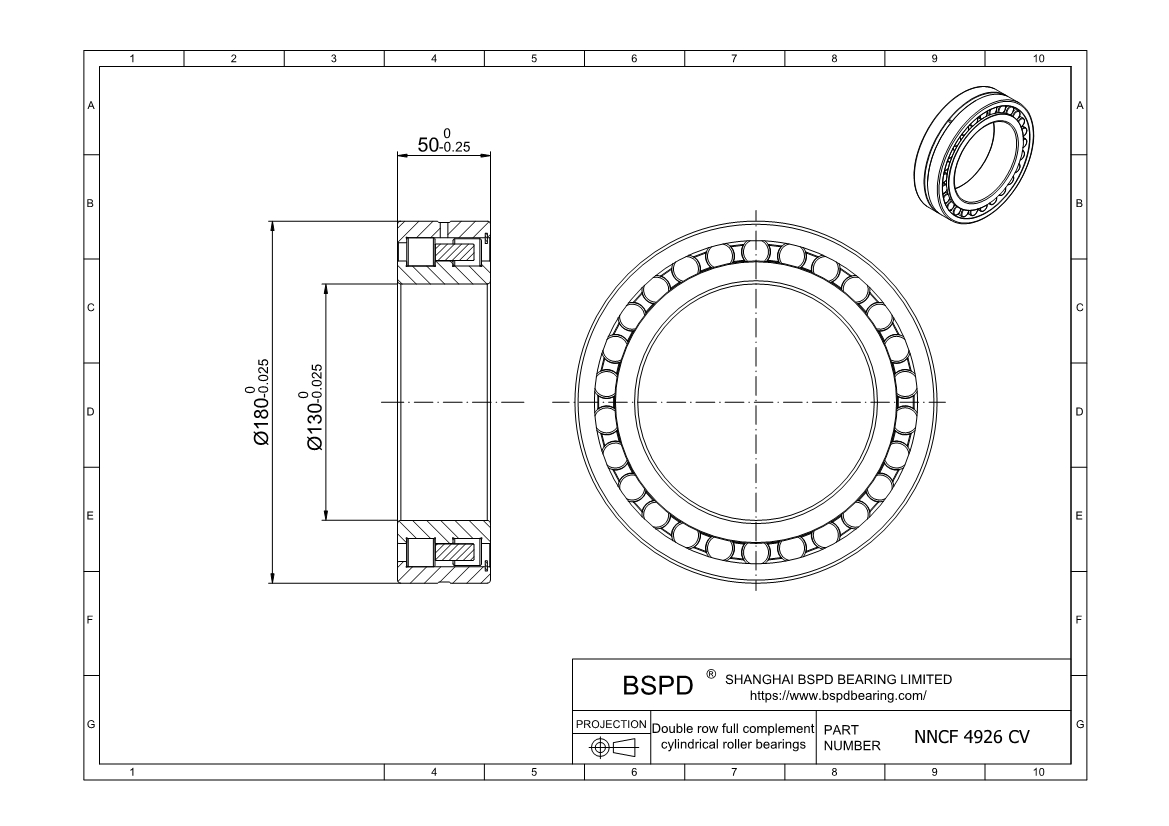

NNCF 4926 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 130 mm； Outer Diameter: 180 mm； Width (Thickness): 50 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 4926 CV |
| Bore diameter | 130 mm |
| Outside diameter | 180 mm |
| Width | 50 mm |
| Basic dynamic load rating | 297 kN |
| Basic static load rating | 530 kN |
| Fatigue load limit | 60 kN |
| Reference speed | 1600 r/min |
| Limiting speed | 2000 r/min |
| Mass | 3.9 kg |
| Shoulder diameter of inner ring | 149 mm |
| Shoulder diameter of outer ring | 160 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 4926 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
