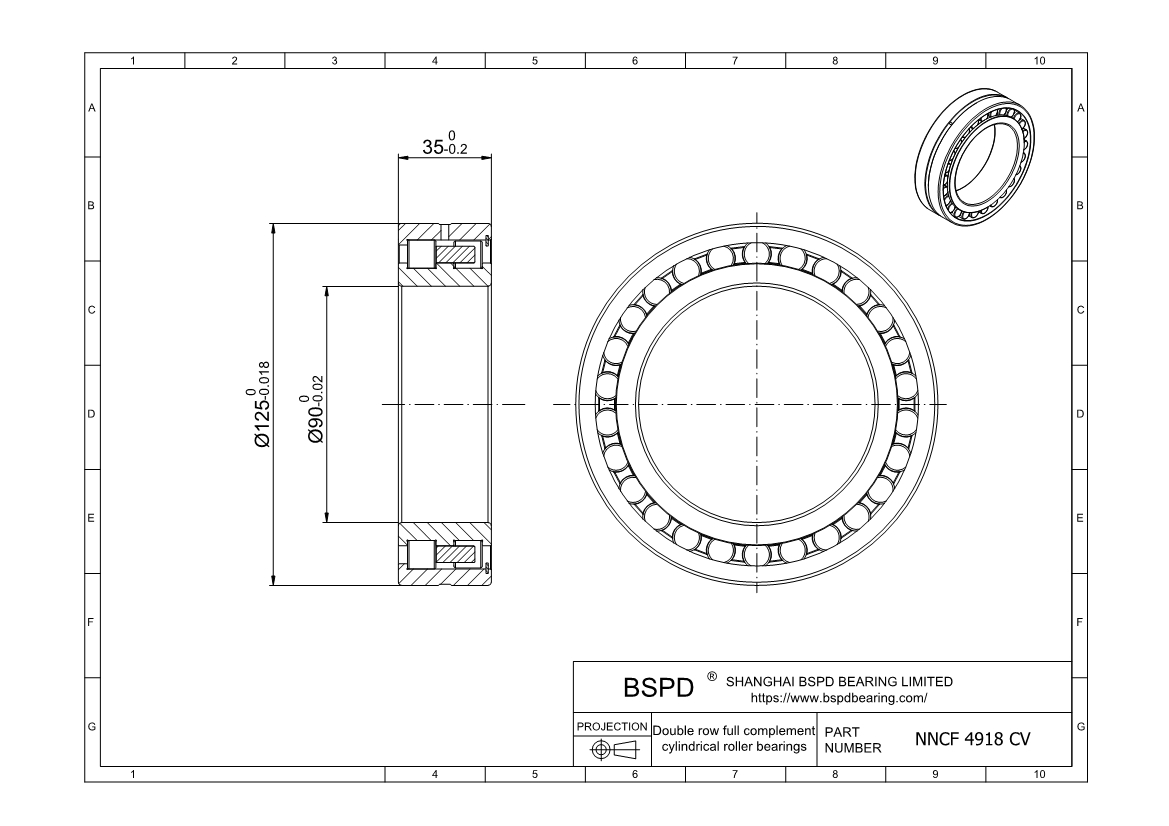

NNCF 4918 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 125 mm； Width (Thickness): 35 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCF 4918 CV
Bore diameter	90 mm
Outside diameter	125 mm
Width	35 mm
Basic dynamic load rating	161 kN
Basic static load rating	300 kN
Fatigue load limit	35.5 kN
Reference speed	2400 r/min
Limiting speed	3000 r/min
Mass	1.35 kg
Shoulder diameter of inner ring	103 mm
Shoulder diameter of outer ring	110 mm
