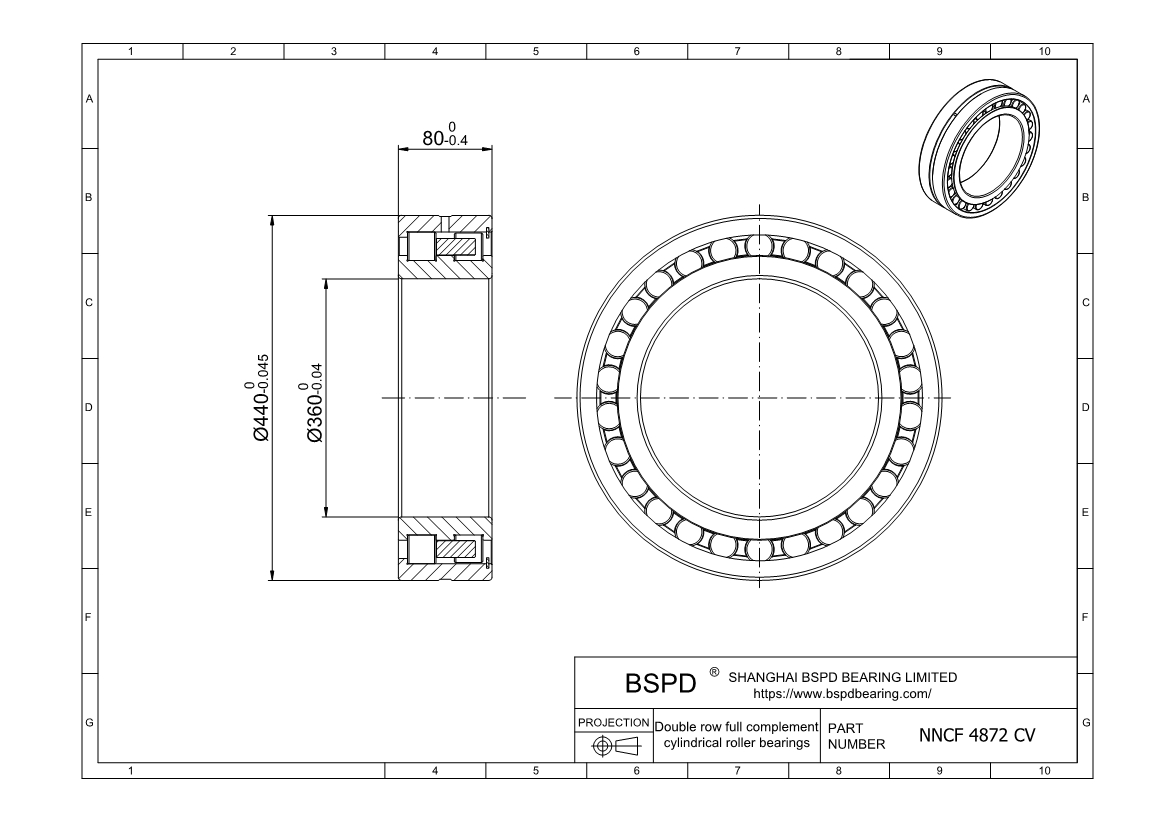

NNCF 4872 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 440 mm； Width (Thickness): 80 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCF 4872 CV
Bore diameter	360 mm
Outside diameter	440 mm
Width	80 mm
Basic dynamic load rating	935 kN
Basic static load rating	2 550 kN
Fatigue load limit	224 kN
Reference speed	560 r/min
Limiting speed	700 r/min
Mass	26.5 kg
Shoulder diameter of inner ring	391 mm
Shoulder diameter of outer ring	413 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NNCF 4872 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
