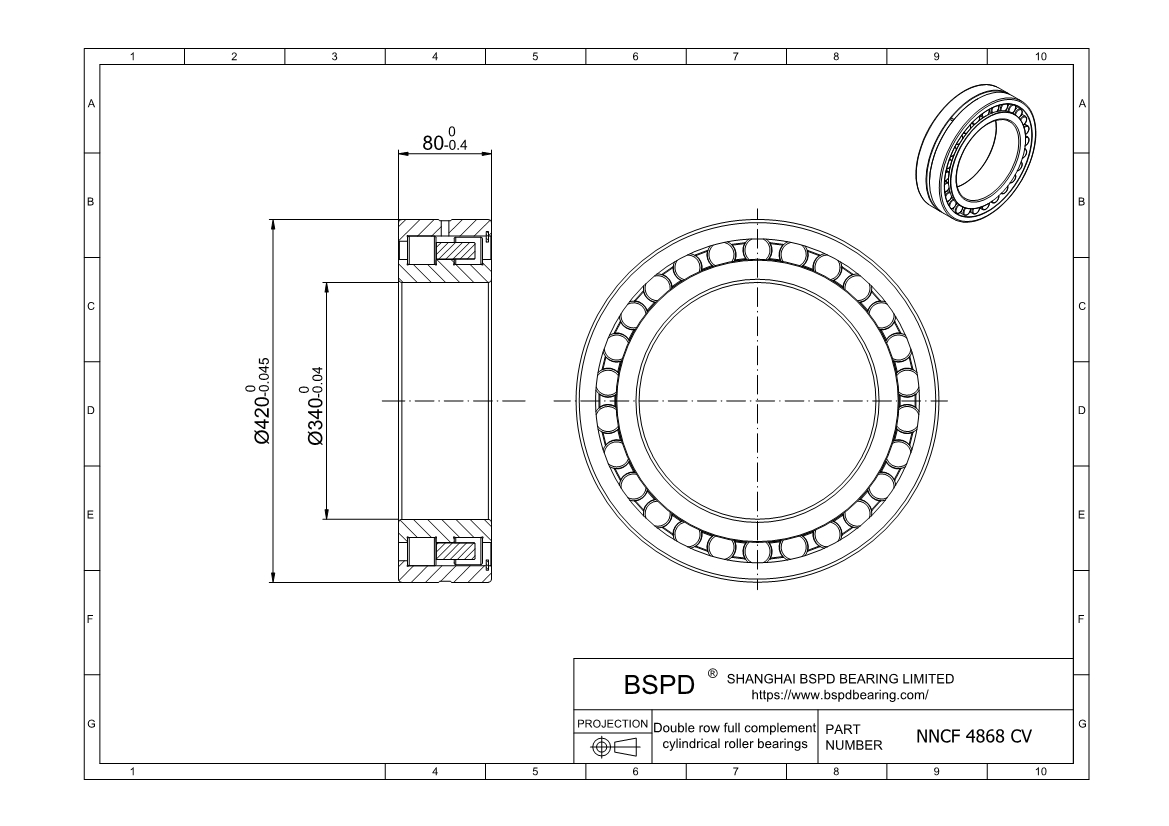

NNCF 4868 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 340 mm； Outer Diameter: 420 mm； Width (Thickness): 80 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 4868 CV |
| Bore diameter | 340 mm |
| Outside diameter | 420 mm |
| Width | 80 mm |
| Basic dynamic load rating | 913 kN |
| Basic static load rating | 2400 kN |
| Fatigue load limit | 216 kN |
| Reference speed | 600 r/min |
| Limiting speed | 750 r/min |
| Mass | 25 kg |
| Shoulder diameter of inner ring | 368 mm |
| Shoulder diameter of outer ring | 390 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 4868 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
