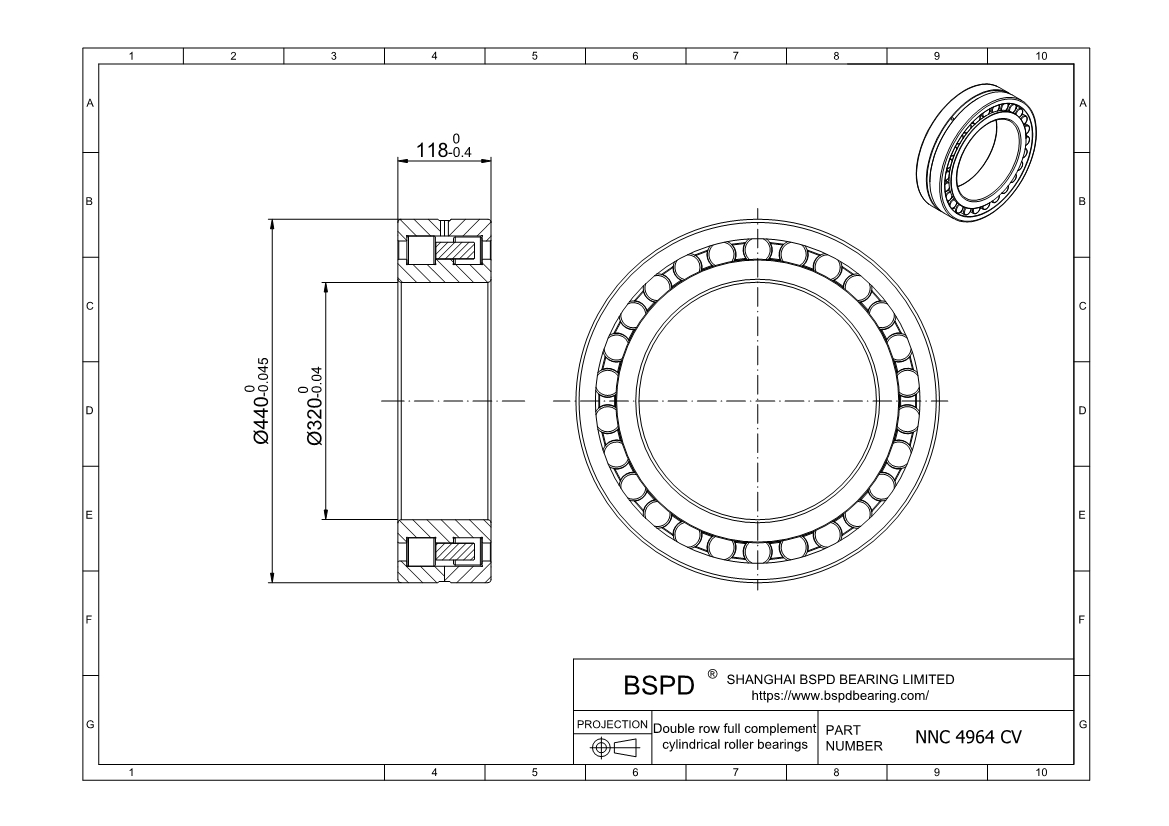

NNC 4964 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 320 mm； Outer Diameter: 440 mm； Width (Thickness): 118 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNC 4964 CV |
| Bore diameter | 320 mm |
| Outside diameter | 440 mm |
| Width | 118 mm |
| Basic dynamic load rating | 1760 kN |
| Basic static load rating | 4050 kN |
| Fatigue load limit | 375 kN |
| Reference speed | 600 r/min |
| Limiting speed | 750 r/min |
| Mass | 56 kg |
| Shoulder diameter of inner ring | 368 mm |
| Shoulder diameter of outer ring | 401 mm |
Print PDF
Request a 3D CAD Model
