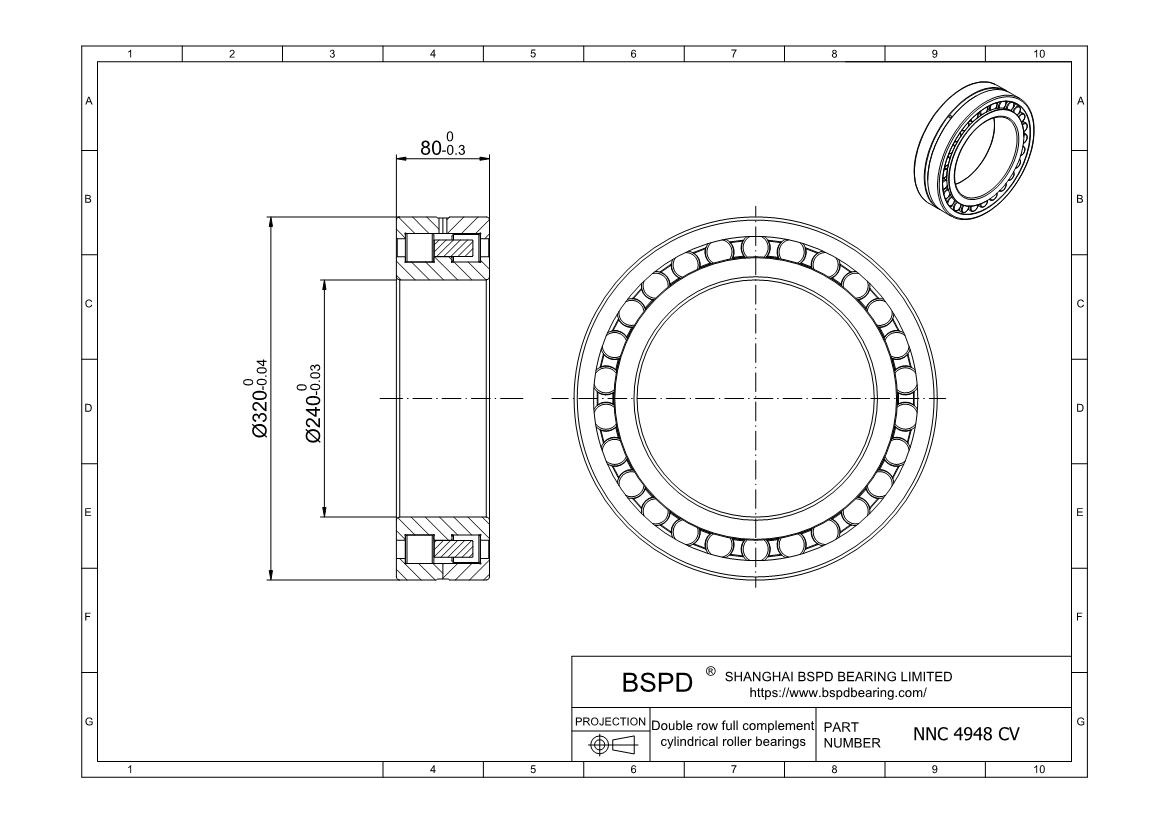

NNC 4948 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 240 mm； Outer Diameter: 320 mm； Width (Thickness): 80 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNC 4948 CV
Bore diameter	240 mm
Outside diameter	320 mm
Width	80 mm
Basic dynamic load rating	781 kN
Basic static load rating	1760 kN
Fatigue load limit	173 kN
Reference speed	850 r/min
Limiting speed	1100 r/min
Mass	18.5 kg
Shoulder diameter of inner ring	271 mm
Shoulder diameter of outer ring	291 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
