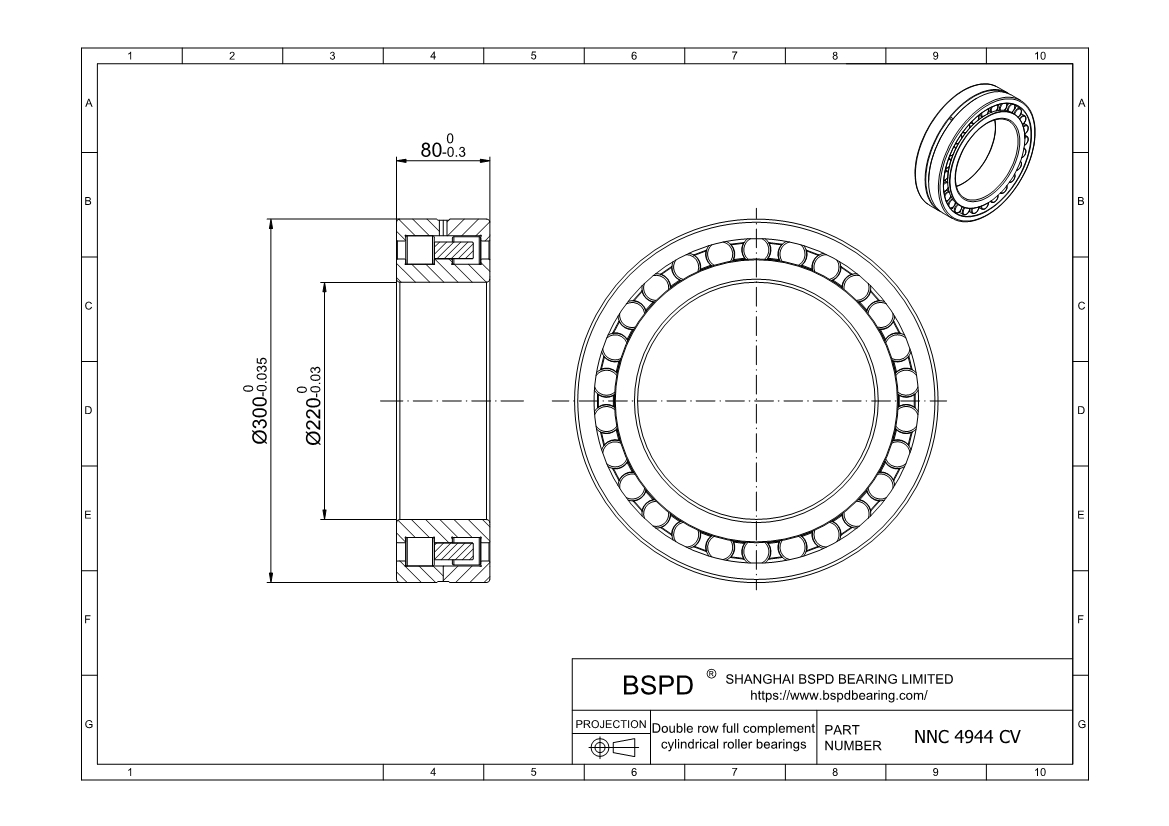

NNC 4944 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 220 mm； Outer Diameter: 300 mm； Width (Thickness): 80 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNC 4944 CV
Bore diameter	220 mm
Outside diameter	300 mm
Width	80 mm
Basic dynamic load rating	737 kN
Basic static load rating	1600 kN
Fatigue load limit	160 kN
Reference speed	950 r/min
Limiting speed	1200 r/min
Mass	17 kg
Shoulder diameter of inner ring	248 mm
Shoulder diameter of outer ring	269 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
