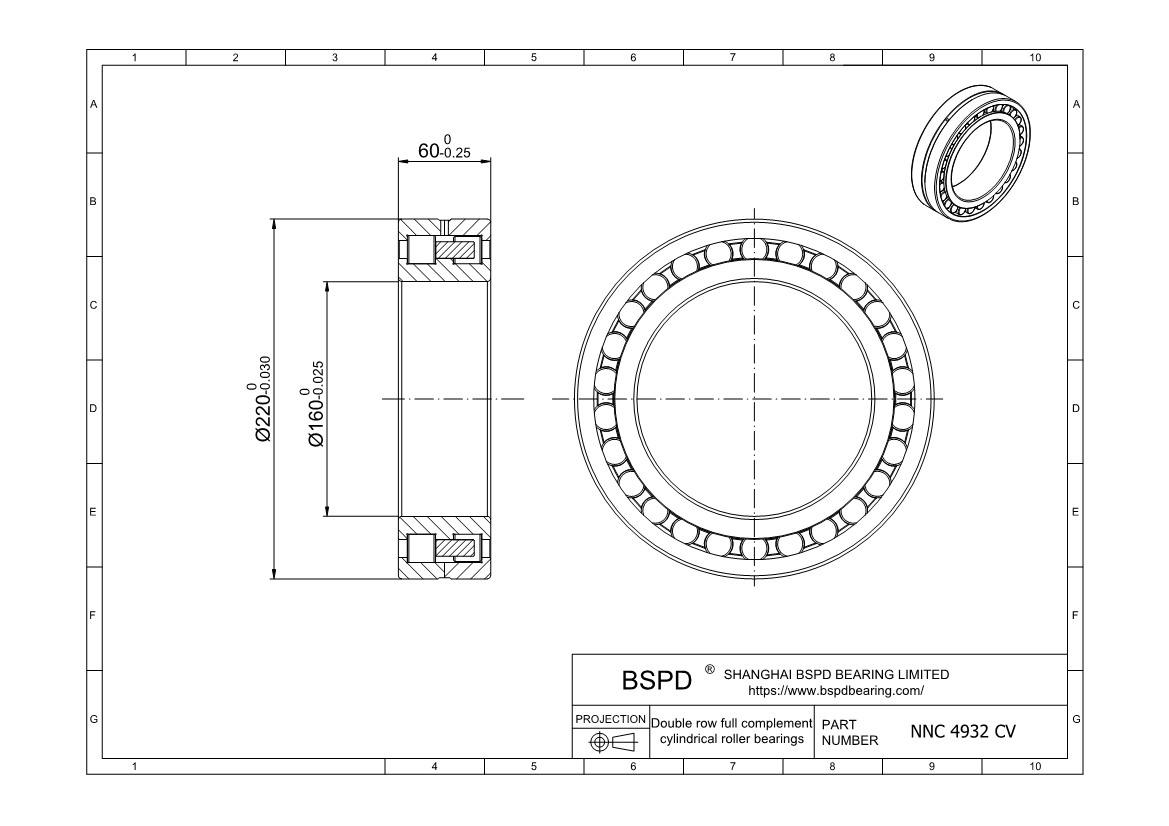

NNC 4932 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 160 mm； Outer Diameter: 220 mm； Width (Thickness): 60 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNC 4932 CV |
| Bore diameter | 160 mm |
| Outside diameter | 220 mm |
| Width | 60 mm |
| Basic dynamic load rating | 446 kN |
| Basic static load rating | 915 kN |
| Fatigue load limit | 96.5 kN |
| Reference speed | 1300 r/min |
| Limiting speed | 1600 r/min |
| Mass | 7 kg |
| Shoulder diameter of inner ring | 185 mm |
| Shoulder diameter of outer ring | 200 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNC 4932 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
